Electromagnetic Door Holders
There are 17 Similar products,Comparison
Wall Mount Door Holder
Model:YD-604
YD-604 is a wall mount door holder .the Maximum tension achieves 50kg(110Lbs),with the feature of environmental friendly low power consumption.It will release automatically the fire door in case of fire.It also contains build-out release button for testing and build-in MOV which reverse current protection.
Keywords:
Share to:
Product Parameter Parameter Description

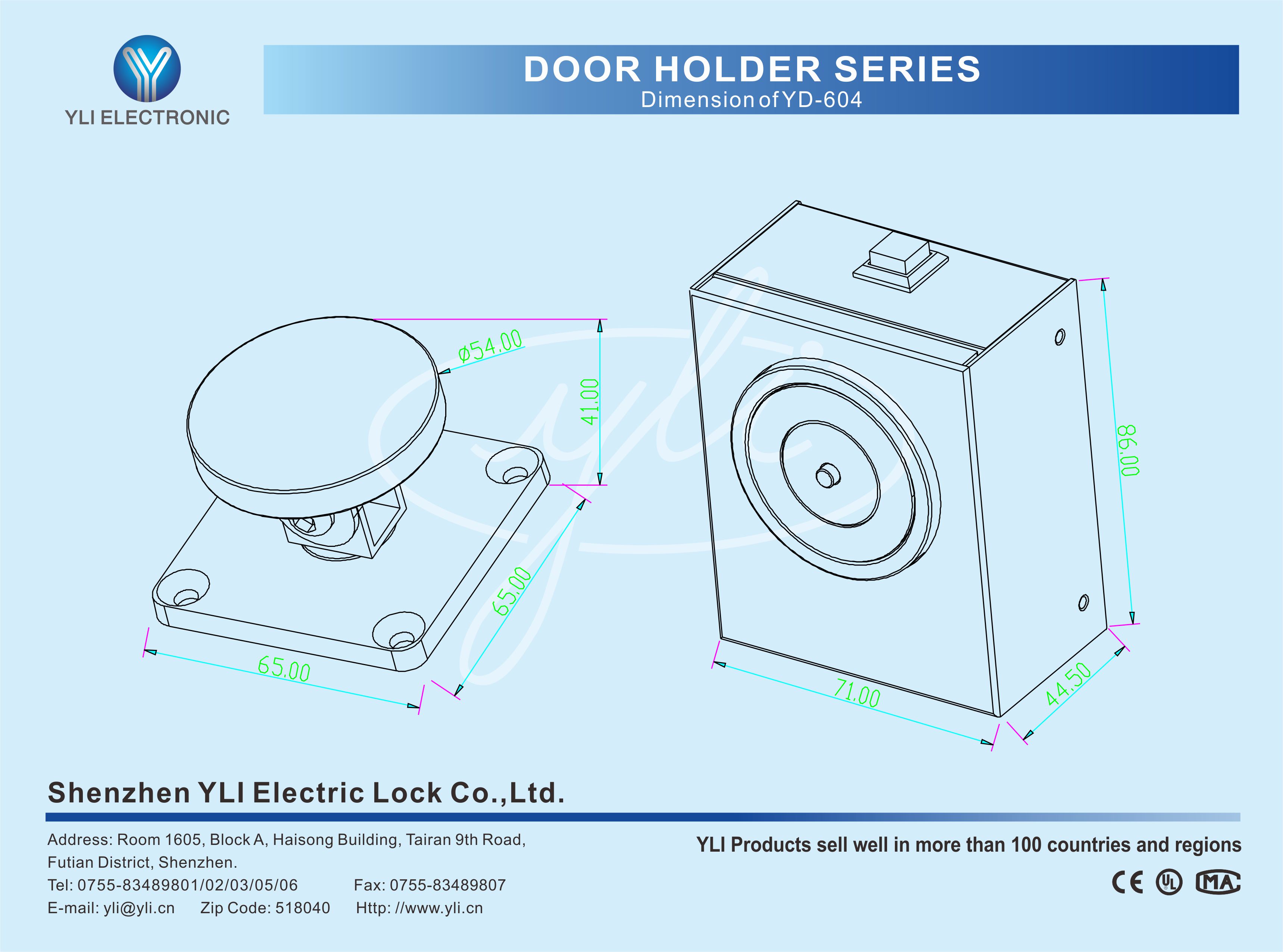

Dimensions  70Lx40Wx85H(mm)
Holding Force  70kg(140Lbs)±10%
Voltage  Factory Default:24VDC,12VDC(Adjustment)
Current Draw  12V/140mA     24V/70mA
Signal Output  NO(Green)/NC(Yellow)/COM(White) YD-604-S
Optional   Manual door release button
Suitable for  All Kind of Single & Double Smokeproof Doors
Surface Temp  ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection
Finishes for Armature  Zinc
Salt spray test 500-hour exposure (National laboratory report)
Weight  0.9kg
Certification CE-EMC FCC  EN1155 EN1634-1
Col linear Load: 70kg(140Lbs)±10%
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 20
Packing Size(L*W*H)(cm) 60*35*16.5
Gross Weight(KG) 18.2
