Electromagnetic Door Holders
There are 17 Similar products,Comparison
Mortice Mounted Door Holder
Model:YD-603
YD-603 is a mortise mount door holder.Feature of low power consumption makes it more environmental friendly and more durable. Build-out release button for testing and build-in MOV reverse current protection
Keywords:
Share to:
Product Parameter Parameter Description

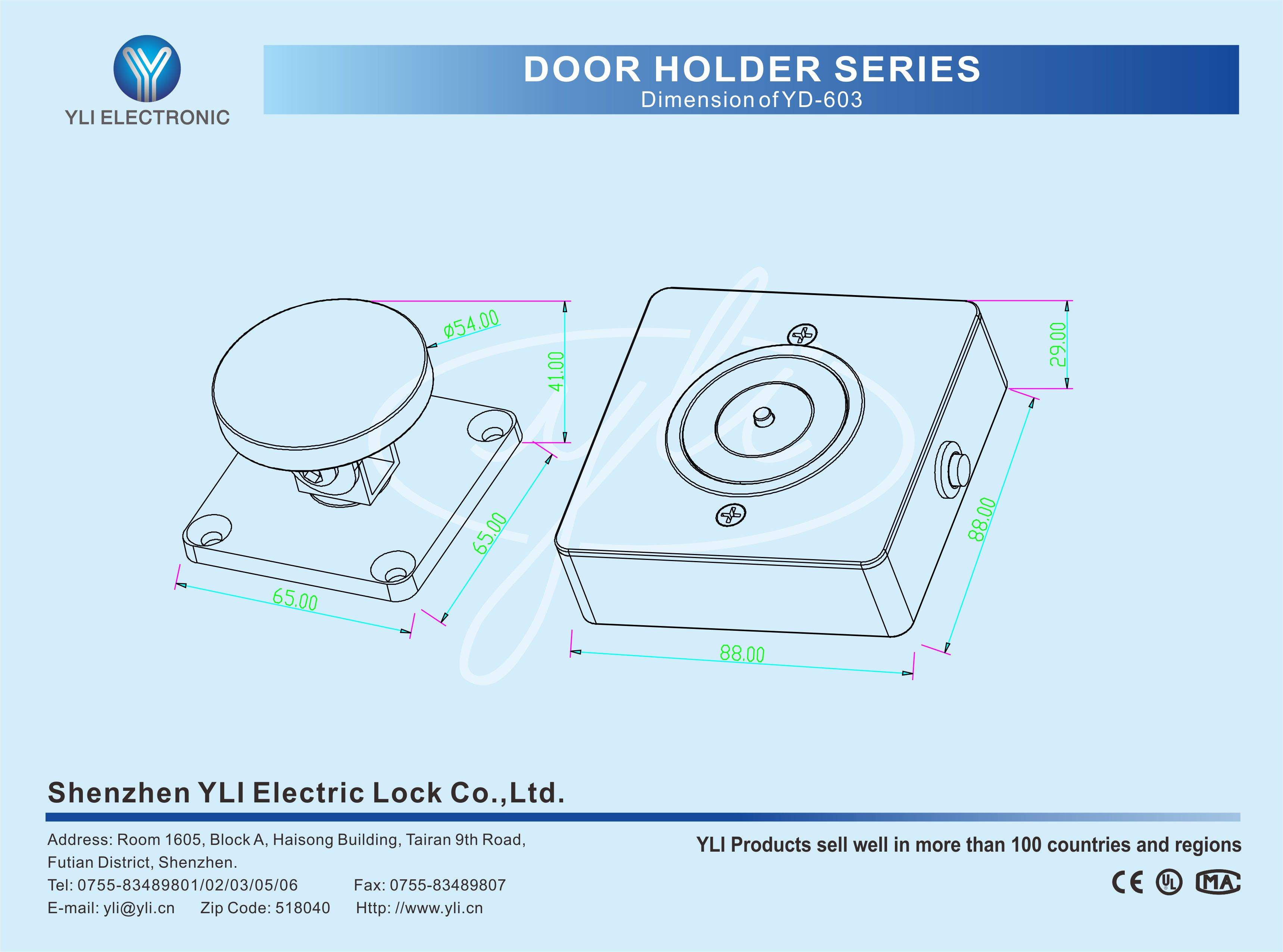

Dimensions 88Lx88Wx29H(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default:24VDC,12VDC(Adjustment)
Current Draw 12V/140mA     24V/70mA
Signal Output NO(Green)/NC(Yellow)/COM(White) YD-603-S
Optional Manual door release button
Suitable for All Kind of Single & Double Smokeproof Doors
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection
Faceplate material Stainless steel
Finishes for Armature Chromium
Salt spray test 500-hour exposure (National laboratory report)
Weight 1.0kg
Certification CE-EMC FCC  EN1155 EN1634-1
Col linear Load Test 50kg--110pounds.
The Standard Voltage is 24 VDC when finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design,  Dual Insulate Housing.
Shunt and Defend the Cigarette Door Automatically During the Fire Alarm.
CE Certificate.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 20
Packing Size(L*W*H)(cm) 60*35*16.5
Gross Weight(KG) 19.6

YDG-1、YDG-2
