Electromagnetic Door Holders
There are 17 Similar products,Comparison
Basic Wall Mount Door Holder
Model:YD-601
YD-601 is a standard type wall mount door holder .which adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 50kg(110Lbs)Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.
Keywords:
Share to:
Product Parameter Parameter Description

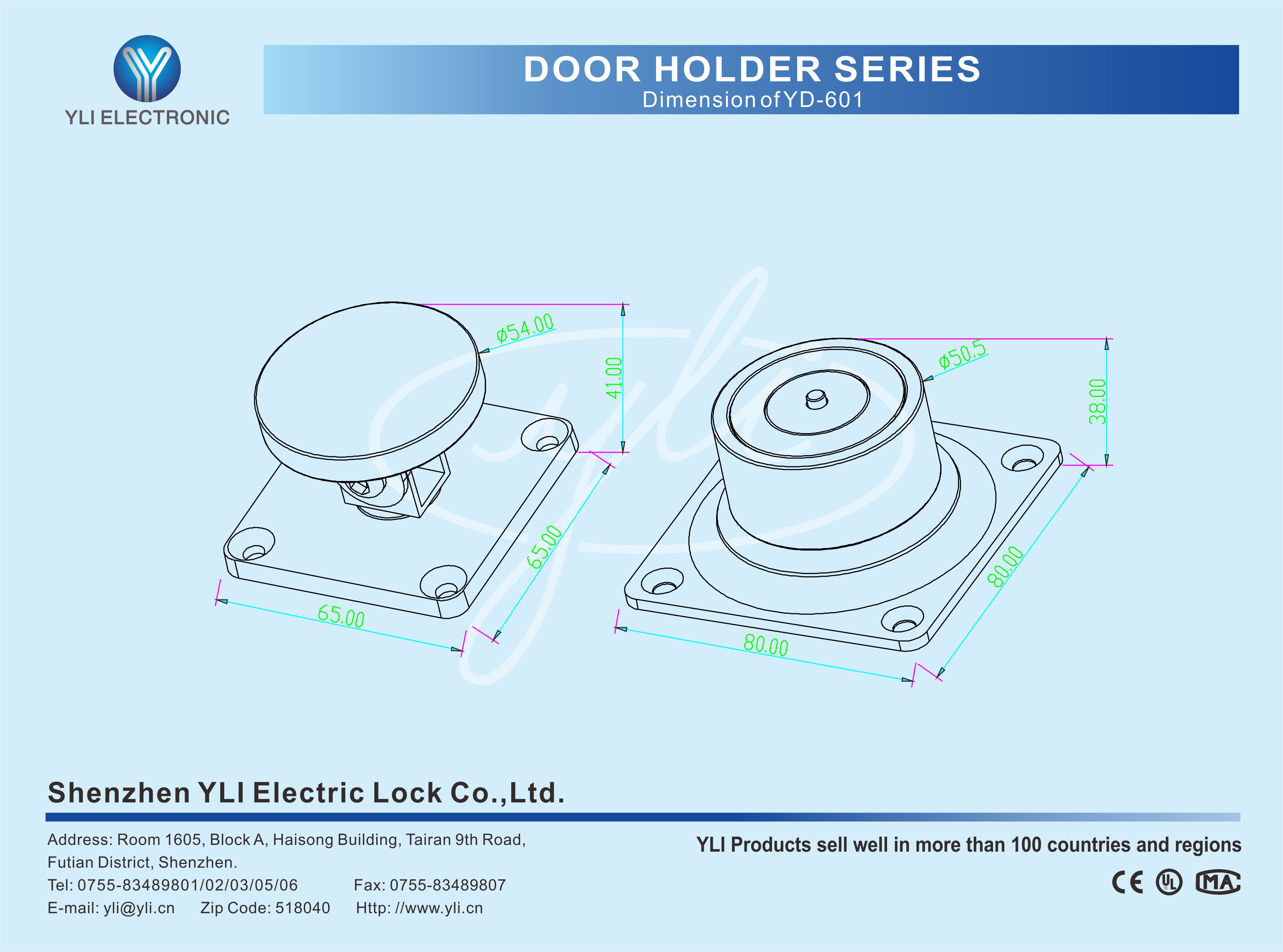

Dimensions  L80xW80xH40(mm)
Holding Force 70kg(140Lbs)±10%
Voltage  Factory Default:24VDC,12VDC(Adjustment)
Current Draw  12V/140mA     24V/70mA
Signal Output  NO( White)(YD-601S)
Suitable for   All Kind of  Single & Double Smokeproof Doors
Surface Temp  ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection Zinc
Finishes for Armature  Zinc
Salt spray test 500-hour exposure (National laboratory report)
Weight  0.85kg
Certification CE-EMC FCC  EN1155 EN1634-1
Col linear Load: 70kg(140Lbs)±10%
Dual Voltage 12/24 VDC(Adjustable).
The Standard Voltage is 24VDC when Finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design,  Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
CE Certificate.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 20
Packing Size(L*W*H)(cm) 60*35*16.5
Gross Weight(KG) 17

YDG-1、YDG-2
