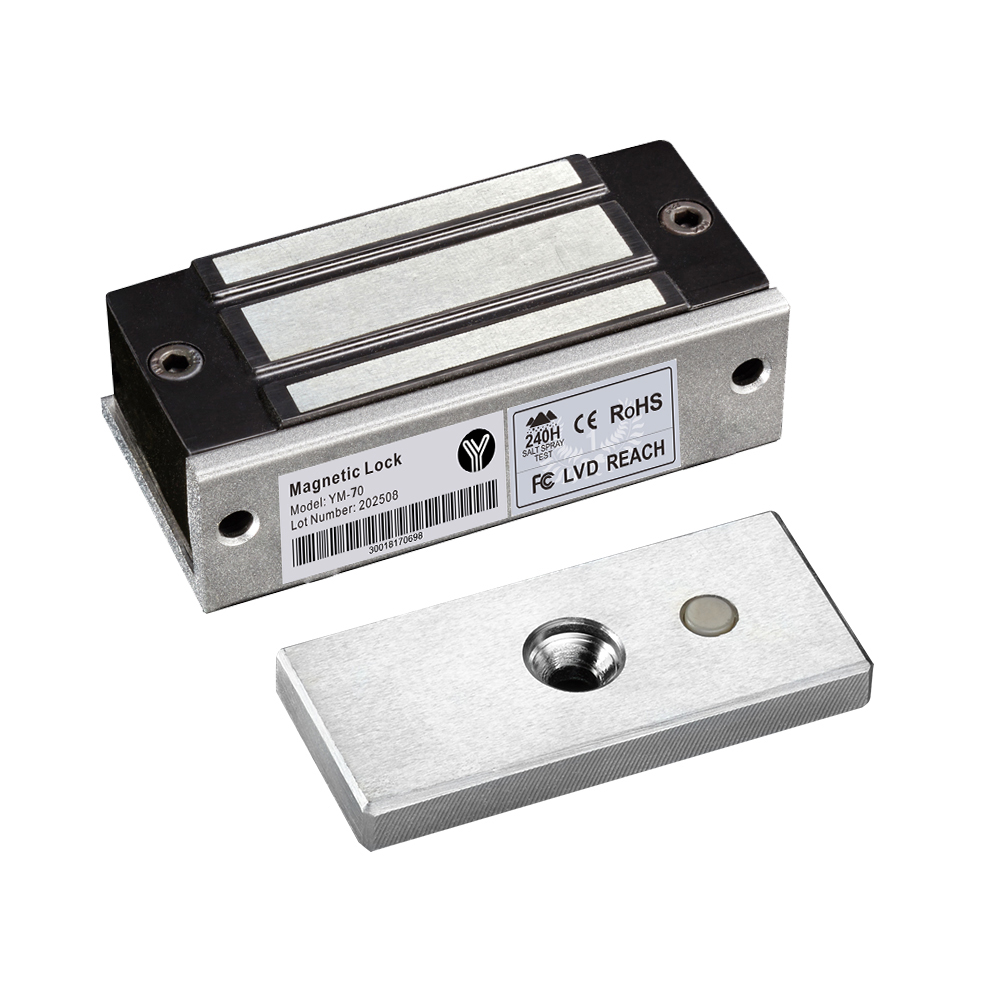

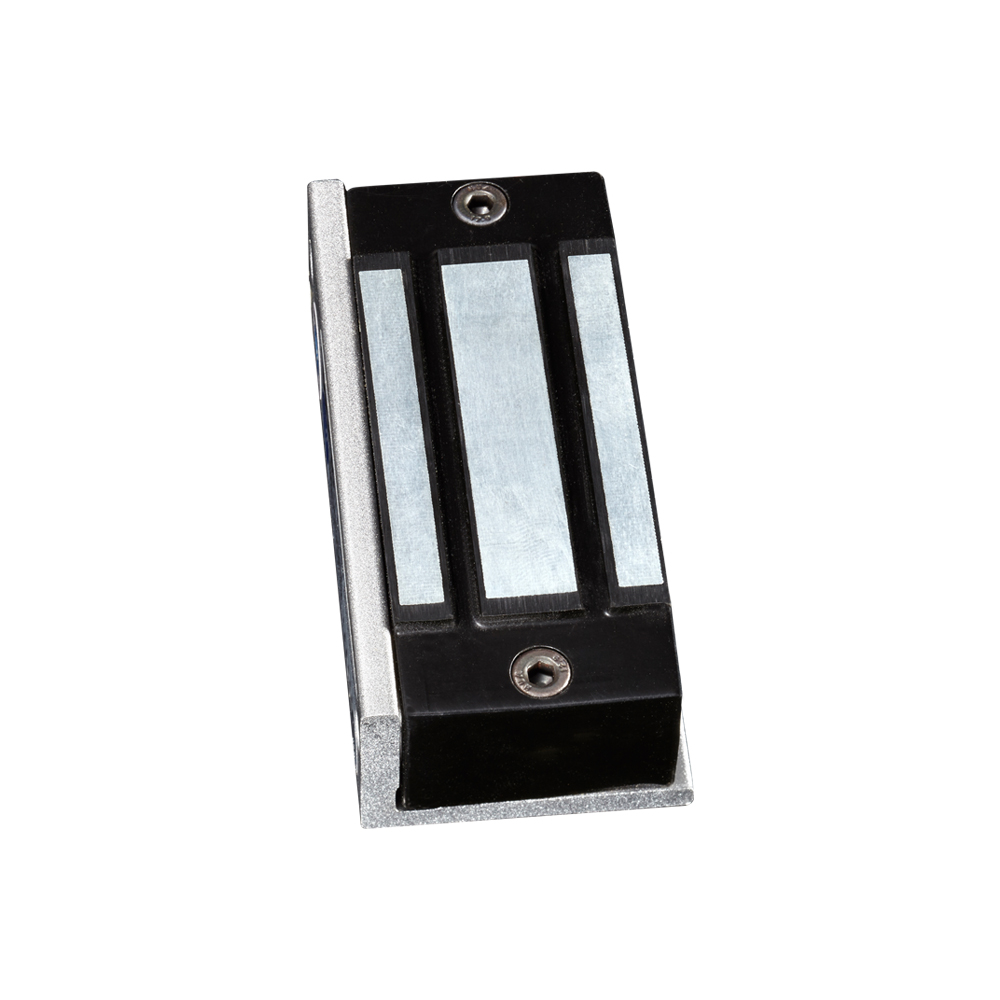

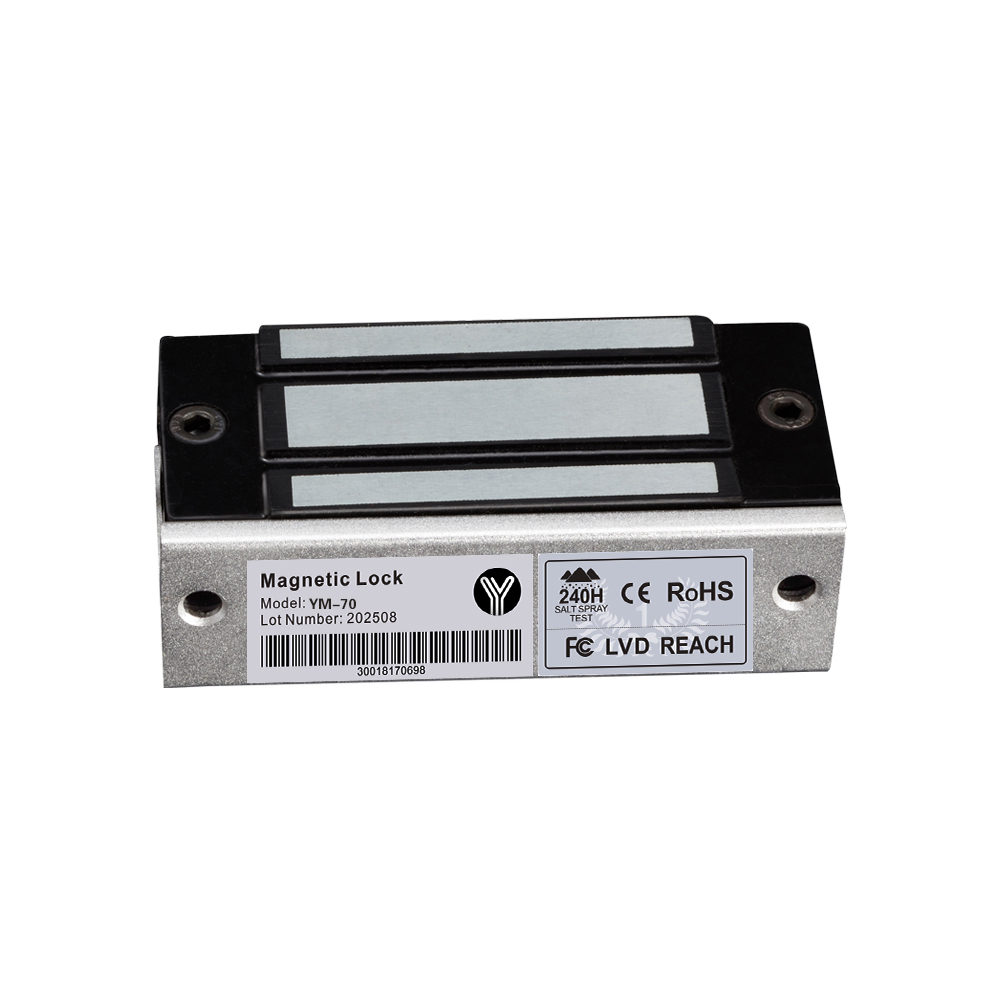

70kg Single Door Mini Magnetic Lock(140Lbs)
Model:YM-70N/YM-70N-S
YM-70 belongs to a mini single magnetic lock with 140lbs holding force. It is with easy installation and designed for showcase, cabinet door. It is with Special anti-residual magnetism designed .
Prev:Nothing
Next:Nothing
Share to:
Product Parameter Parameter Description
Signal output Lock signal  NO/COM (YM-70N-S)

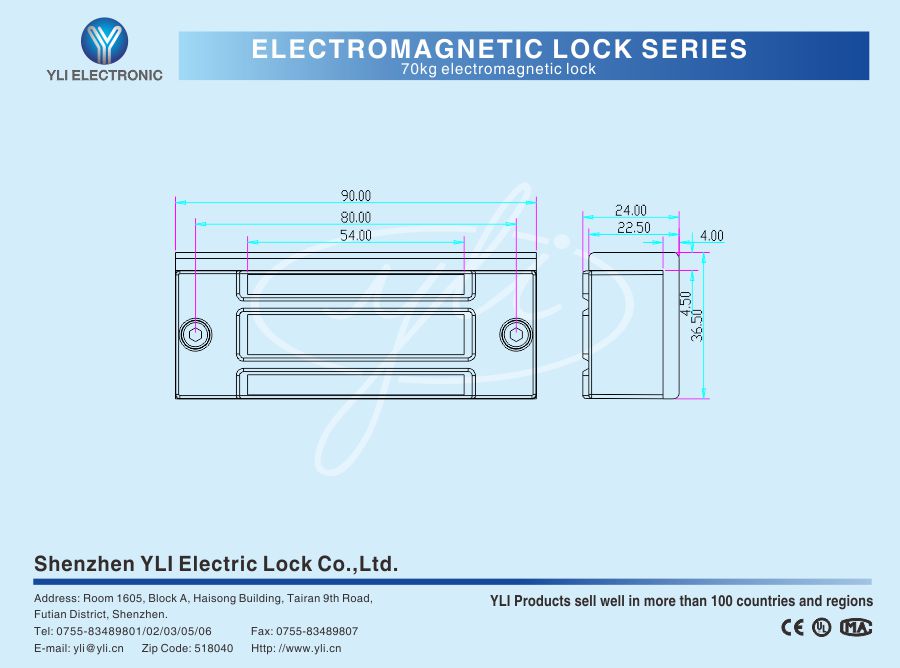

Dimension 90Lx36.5Wx24H(mm)
Armature Plate Dimension 75Lx33Wx10H(mm)
Input Voltage DC12V(Default); DC24V(Adjustable)
Current 12V/220mA(±10%); 24V/110mA(±10%)
Holding Force 70kg(140Lbs)±10% direct pull
Operating temperature -30℃~+66℃ (-22~151F)
Operating humidity 0~95% relative humidity
Surface temperature Within 20℃ above ambient temperature
Salt spray test 240-hour exposure (National laboratory report)
Residual magnetism test Demagnetization and unlocking within 0.5 seconds
Overvoltage test 125% overload normal operation
Undervoltage test 85% input voltage pull force test
Housing treatment Anodized hard plating (500-hour salt spray test report)
Lock core certification Encapsulation with American UL-certified fireproof resin
Suitable File Cabinet ,Display Cabinet
Cover Finish Anodized aluminum
Weight 0.7KG
Certification CE-EMC CE-LVD RoSH
Collinear Load Test 70kg,140pounds.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CE Certificate by European Union,MA Certificate by China Public Security Office.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 18
Packing Size(L*W*H)(cm) 62*14.5*14.3
Gross Weight(KG) 10.8
