Electric Strike for Push Bar
There are 4 Similar products,Comparison

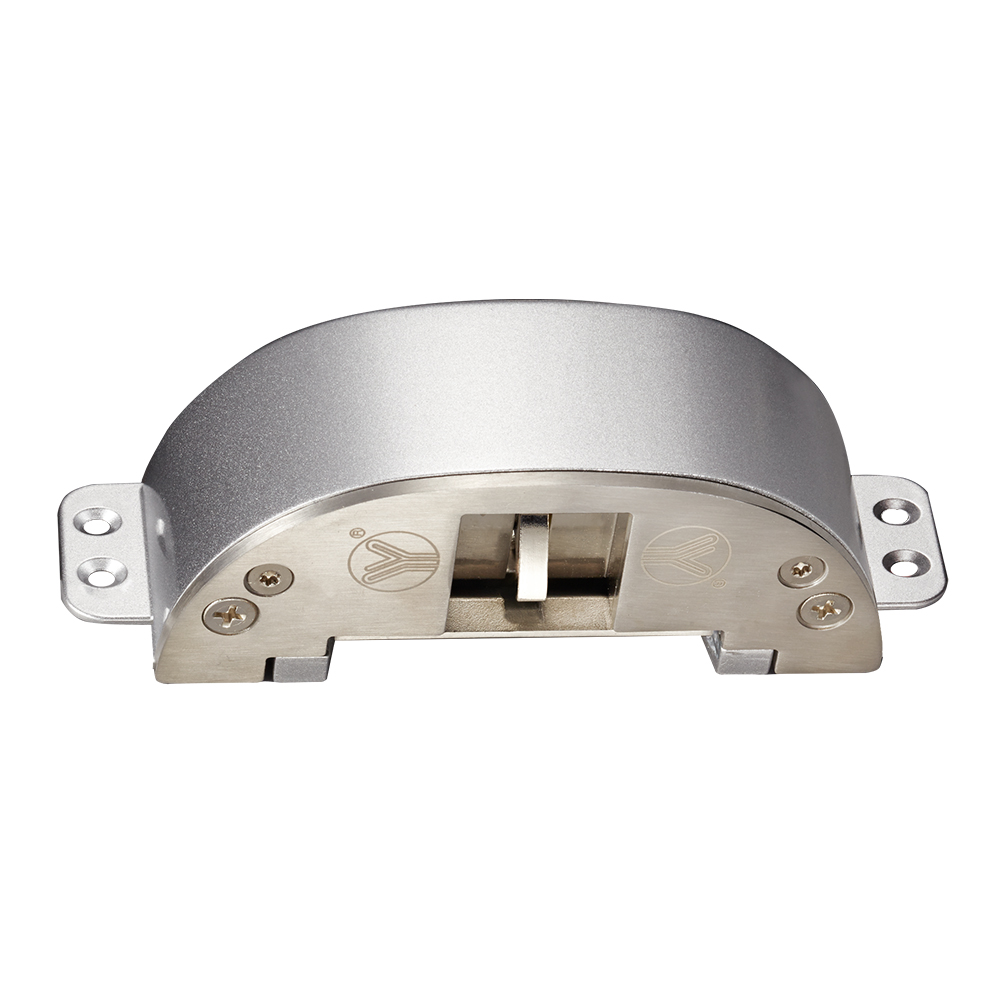

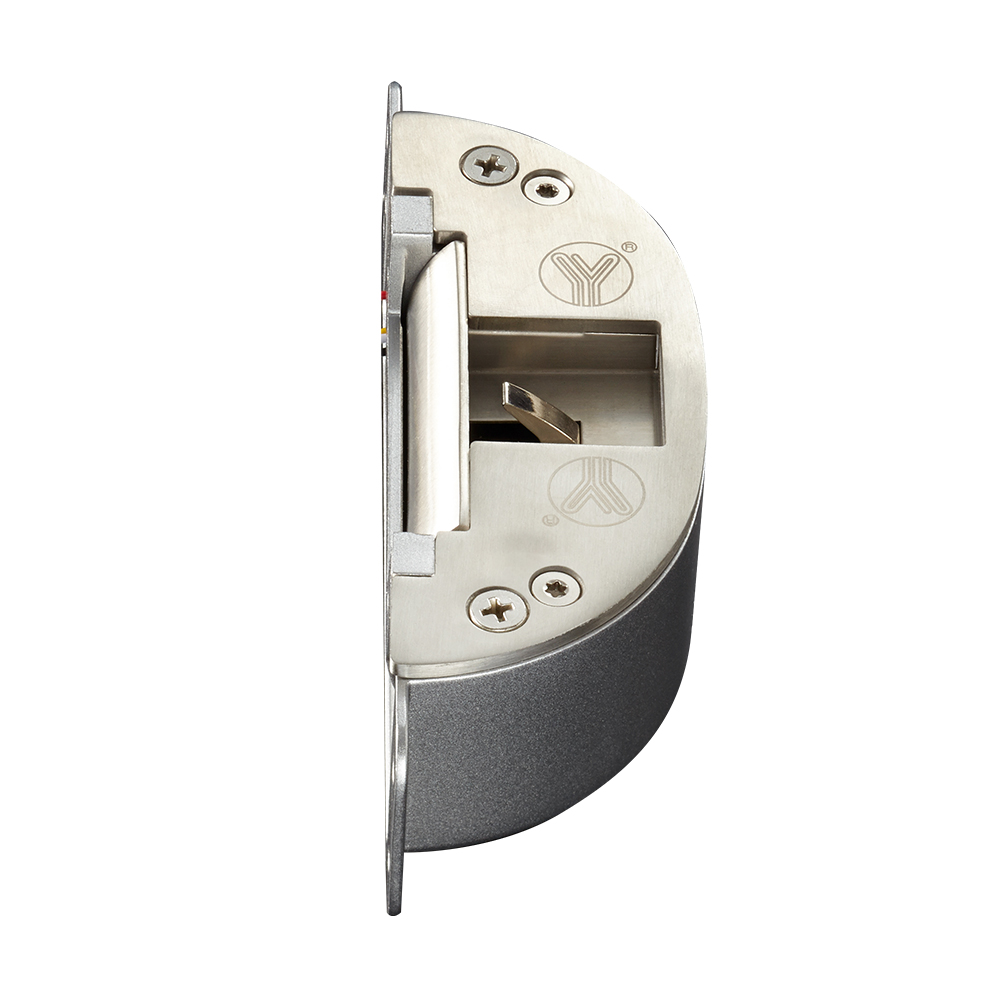

Double Door Electric Strike for Push Bar
Model:YS-622N-S
Enhanced?stress structure?design. The special?design of this lock is applied to all different brands of fire push rod lock. It is passed the 500,000 Mechanical test. You can set the operation mode of Fail Safe or Fail Secure.
Keywords:
Share to:
Product Parameter Parameter Description

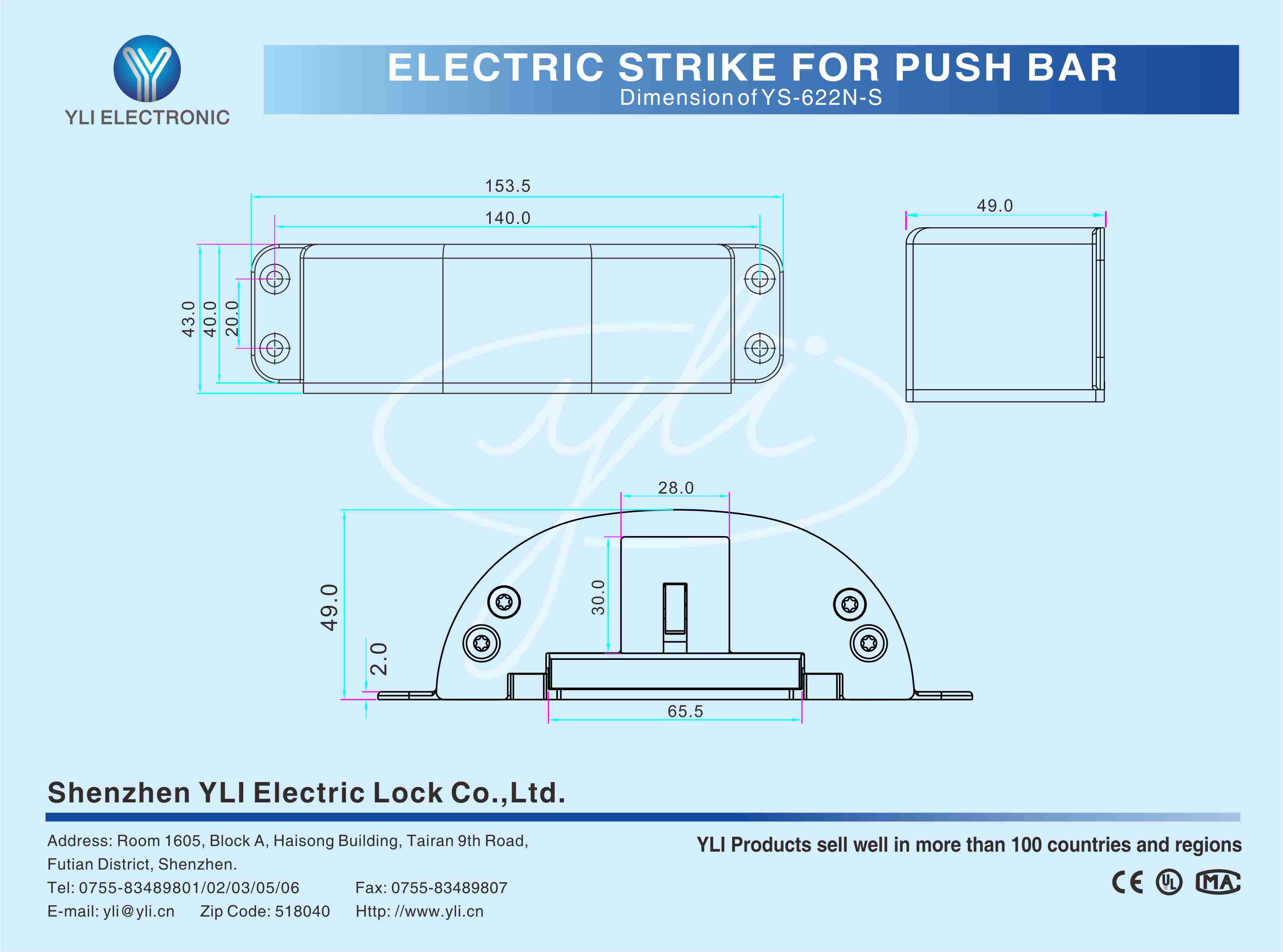

Lock Size  153Lx43Wx49H(mm)
Keeper  304 Stainless Steel
Static strength test approx. 800kg (third-party report)
Voltage  DC12C (24V need order)
Current 12V/320mA(±10%);24V/160mA(±10%)
Signal Output  Door sensor NO/NC/COM
special design  applies to all brands of fire push rod lock
Suitable For  European & American fire push bar
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Protection performance  With Diode Surge Absorption Device
Face plate Housing  High temperature paint
Lock tongue  Surface by coating nickel
The door open 90 degrees
Weight  0.52kg
Certification MA CE-EMC CE-LVD FCC-VOC REACH WEEE
Enhanced stress structure design
Special design, NO/NC Adjustable
50000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
