Electric Strike
There are 34 Similar products,Comparison

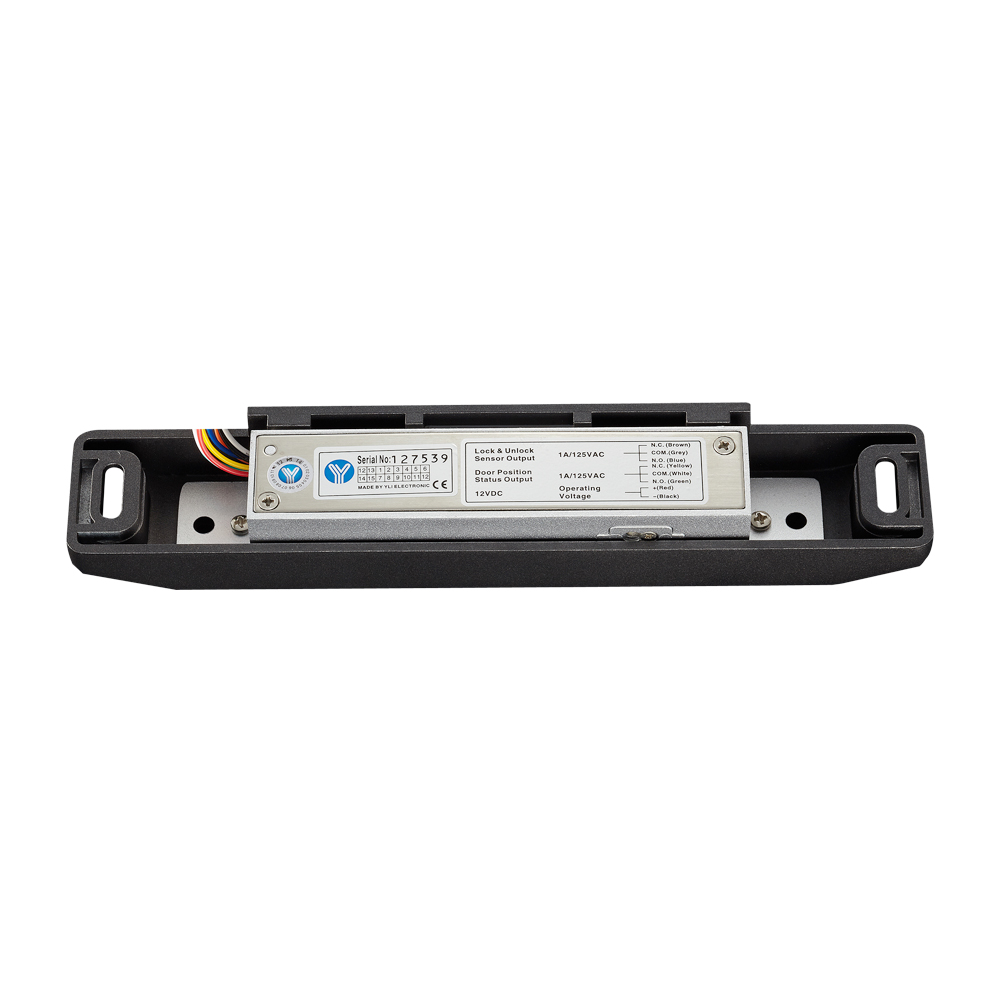

Electric Strike for Push Bar (Single Door)
Model:YS-621-S
YS-621-S is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
Keywords:
Share to:
Product Parameter Parameter Description
Lock Size  230Lx40.5Wx30H(mm)
Keeper  304 Stainless Steel
Static strength  500kg
Voltage  DC12V (24V need order)
Current  12V/320mA(±10%);24V/160mA(±10%)
Signal Output  Lock Status Output NO/NC/COM
special design  applies to all brands of fire push rod lock
Suitable For  supporting rod lock fire door
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  High temperature paint
Lock tongue  Surface by coating nickel
The door open 90 degrees
Weight  0.75kg
Certification MA CE-EMC CE-LVD FCC RoHS REACH WEEE
Enhanced stress structure design
Special design, NO/NC Adjustable
500000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 12
Packing Size(L*W*H)(cm) 54.3*13.5*19.3
Gross Weight(KG) 24.6
