Electric Strike
There are 34 Similar products,Comparison

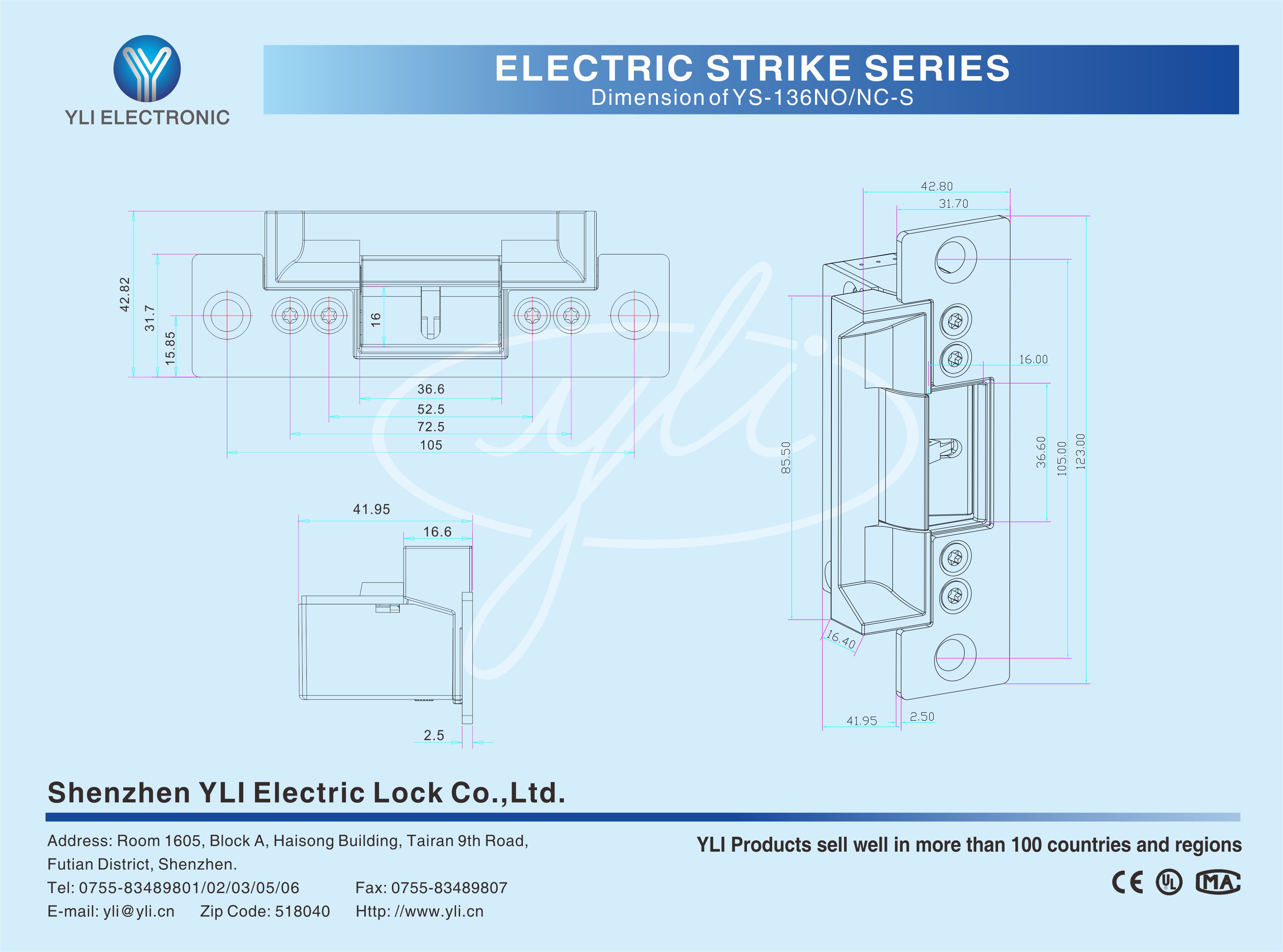

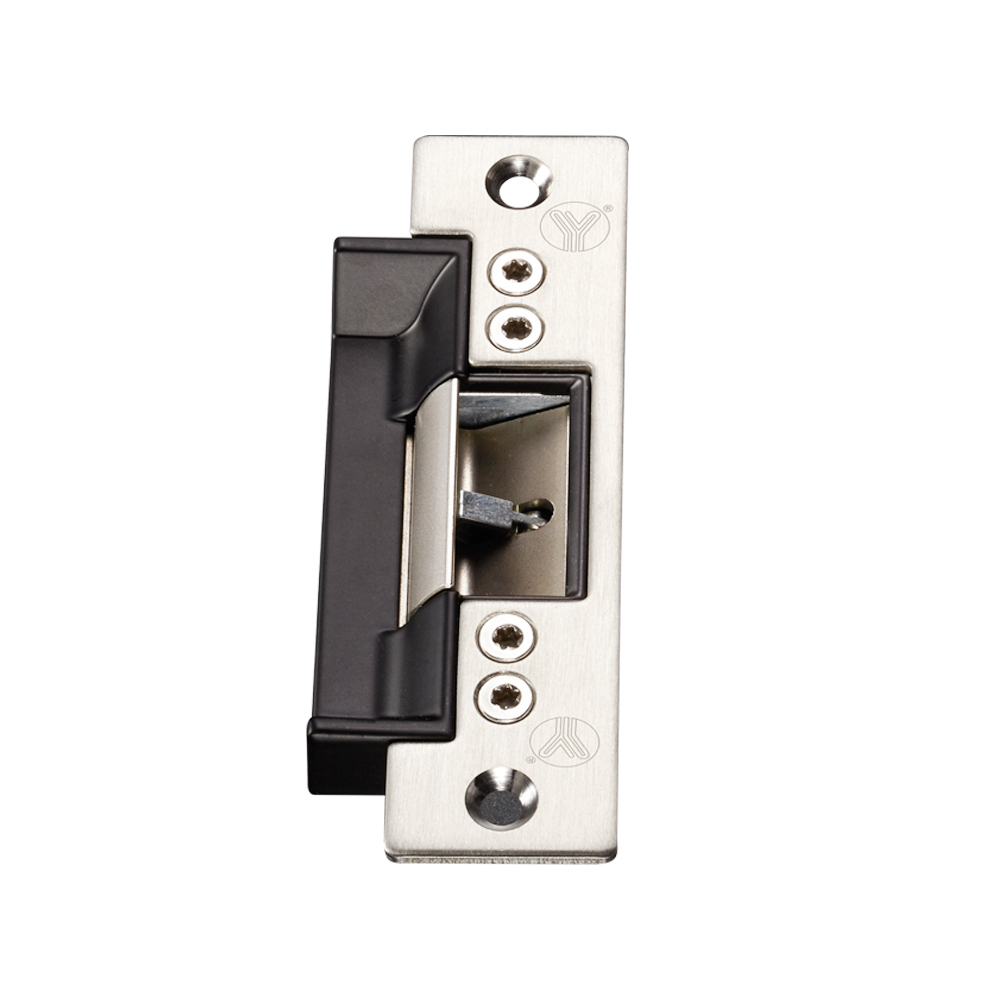

American standard Heavy Duty Electric Strike
Model:YS-136NO/NC-S
The electric strike YS-136NO/NC-s is the same as YS-136 except that the YS-136-S has signal output. YS-136NO/NC-S is an ANSI standard Heavy Duty Electric Strike. This is suitable for many different doors. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
Keywords:
Share to:
Product Parameter Parameter Description
Lock Size  123Lx43Wx42H(mm)
Keeper  Stainless Steel
Static strength  500kg
Voltage  DC12V (Need Order DC24V)
Current  12V/400mA(±10%);24V/160mA(±10%)
Signal Output  Lock Status Output  NO/NC/COM
Feature  Fail Secure(YS-136NO-S); Fail Safe(YS-136NC-S)
Suitable For  Wooden Door,Metal Door,PVC Door
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Lock tongue  Surface by coating nickel
Function  Built-out MOV
Optional Accessories  YS-305  YS-306
Weight  0.34kg
Certification CE-EMC CE-LVD FCC RoHS REACH WEEE



Holding 500kg
Designed for Metal Frame drill a hole,then install it directly
Testing to 100000 cycles
High-Temperature Painted,Durable and Beautiful  Artical
CE Certificate by European Union, MACertificate by China Public Security office


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 60
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 23.4
