Motor Driven Electric Bolt
There are 9 Similar products,Comparison

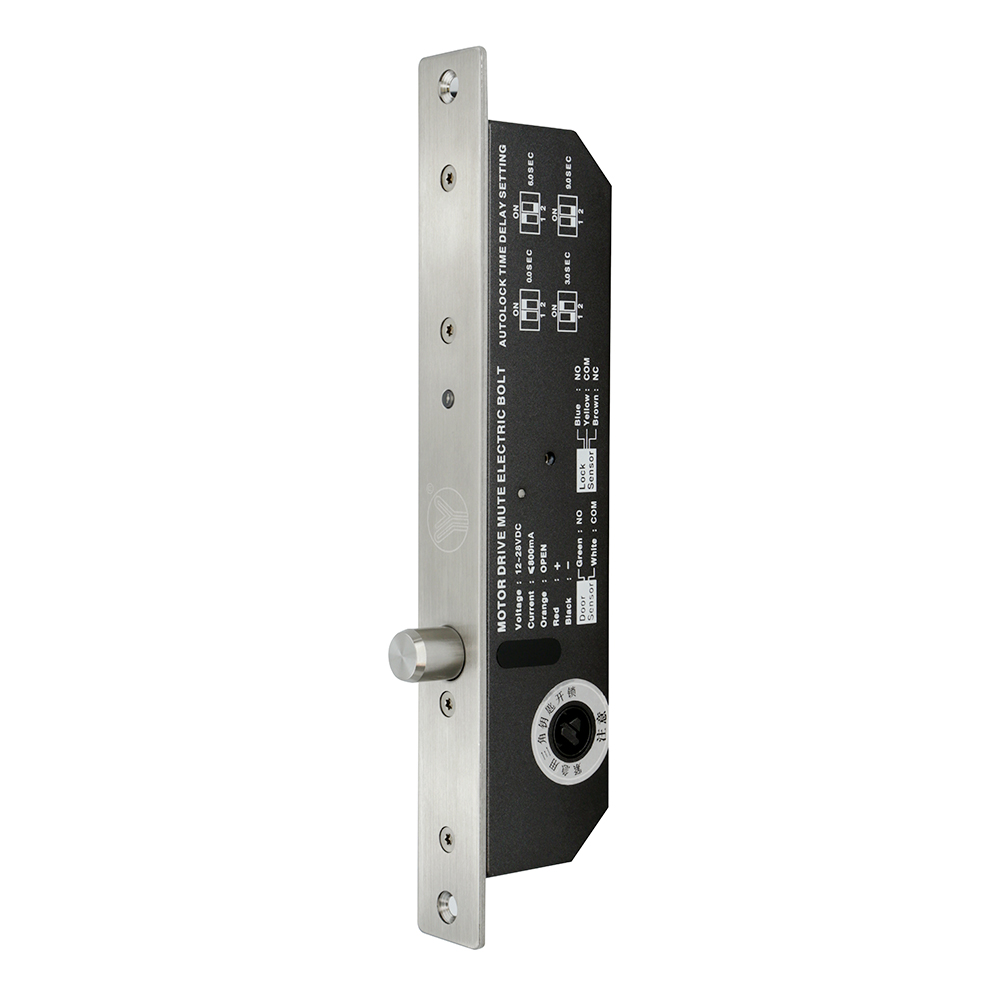

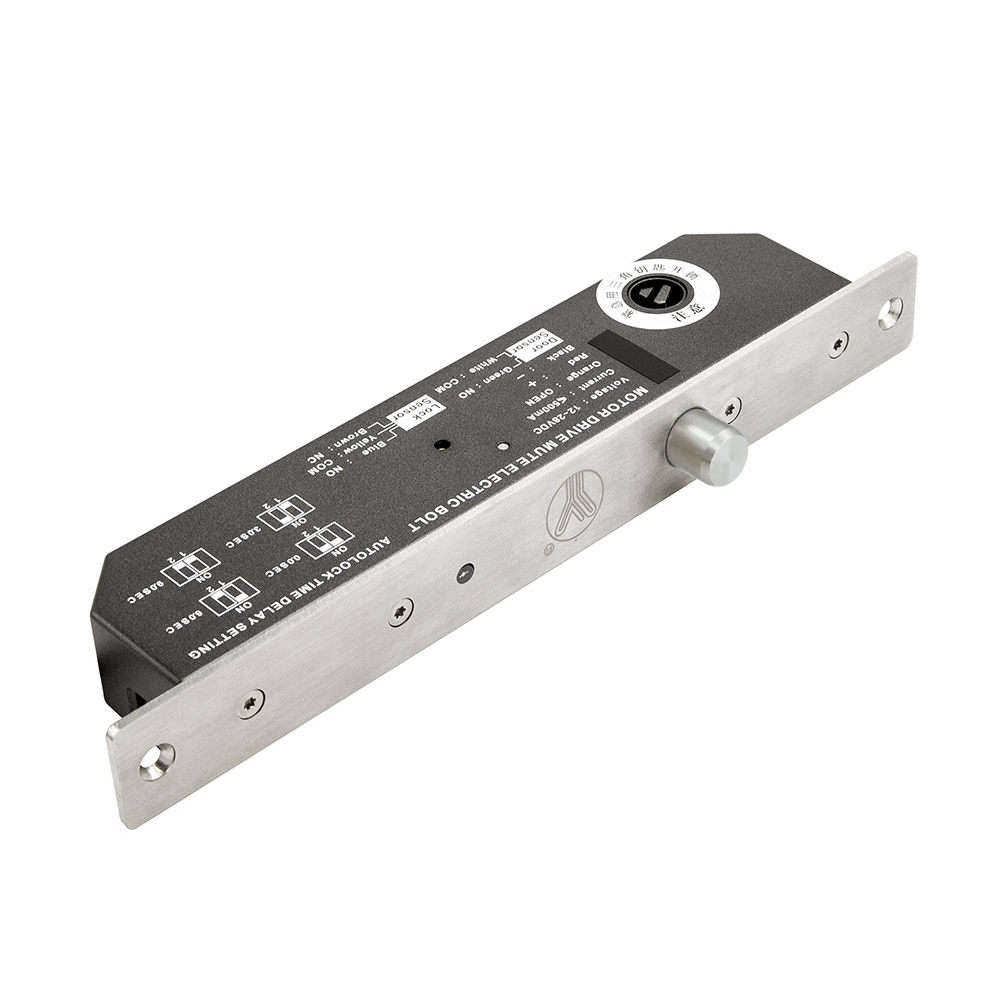

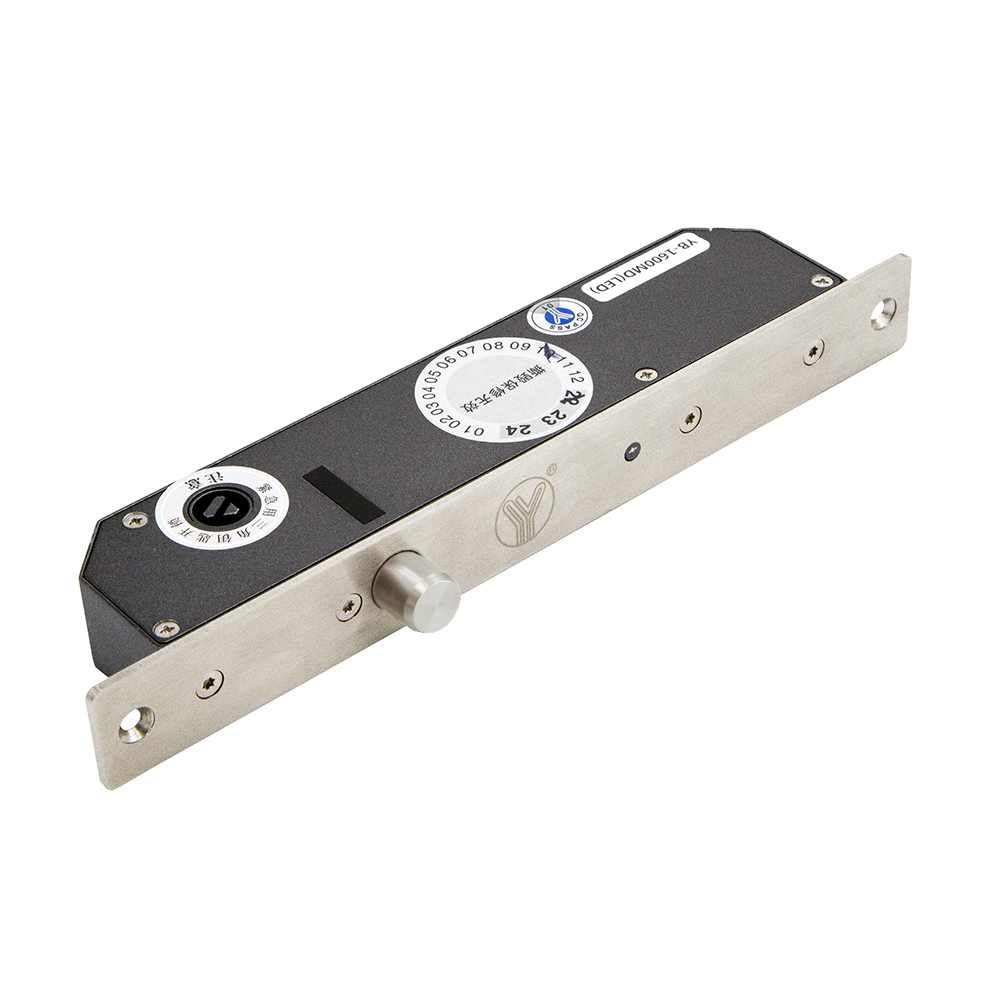

Motor Driven Mute Electric Bolt
Model:YB-1600MD(LED)
The motor driven mute electric bolt is locked and unlocked by the activity of the bolt which is driven by the stepping motor. The stepping motor has great strength, the powerful thrust of the stepping motor can be used to push the bolt to align the door to achieve the purpose of locking when the door is deformed or skewed. All parts are made of metal material, the mechanical structure of inserting and resetting has been treated with noise reduction. The two Hall components on the PCB board can accurately locate and control the stretch out and draw back of the bolt, so that unlocking and locking can be muted. Compared with the traditional electric bolt using solenoid valve structure, when the product enters the locking and unlocking state, there is no need to power the motor continuously, low energy consumption and environmental protection.
Share to:
Product Parameter Parameter Description

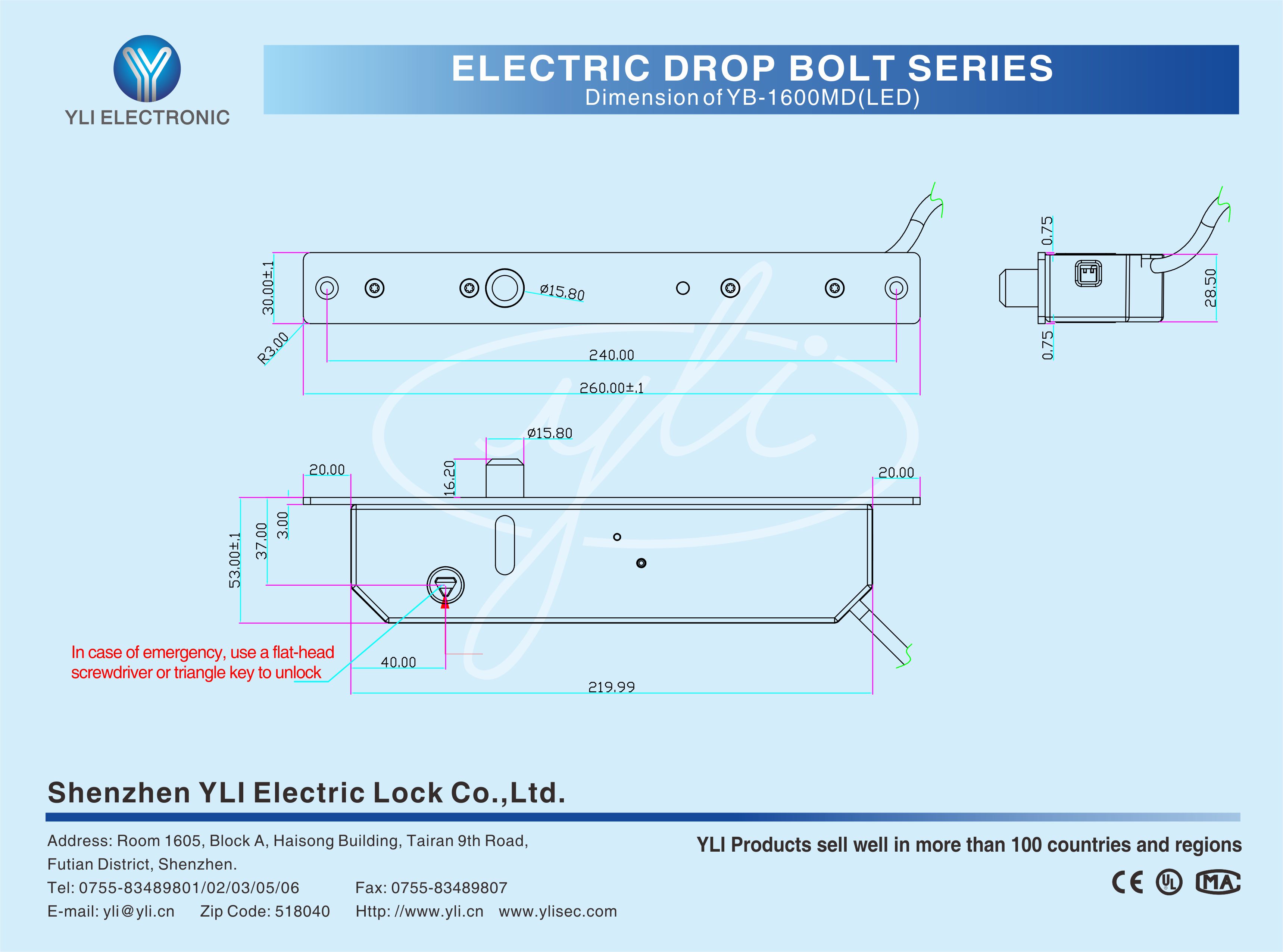

Lock Body 260Lx30Wx53H(mm)
Dimensions of Strike Plate
100Lx25Wx3H(mm)
Dimensions of Latchbolt
14mm(prolongation)x16mm(diameter)304 stainless steel high strength solid bolt
Signal Output Door signal(NO/COM);Lock signal(NO/NC/COM)
Voltage 12~28VDC
Current Start 12V/800mA;Standby 12V/ 50mA
Bolt structure 304 stainless steel
Static strength test approx. 1400kg (third-party report)
LED Light on indicates locked, light off indicates unlocked
Material 304 stainless steel, wire draw finishing
Autolock Time Delay 0,3,6,9sec
Suitable For metal door, glass door
Induction Distance
8mm
Weight
1kg
Patent Number
202222451683.5  202222452053.X



Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
