| Product Parameter |
Parameter Description |
| Dimension |
89Lx89Wx23H(mm) |
|
Frequency |
13.56MHz |
|
Power Supply Type |
Linear or Switching (Ripple< 50mVpp) |
| Input Voltage |
+8~16V DC |
| Input Current |
150 mA (Max) |
|
Card Type |
Mifare Card (one-card-one-key) |
|
Proximity Read Range（Normal Use） |
≤4cm |
|
Cable Distance |
150 meters (Max) |
| Output interface |
Wiegand |
|
Waterproof Level |
IP55 |
| Operating Temperature |
-20°C to 50°C |
| Operating Humidity |
0 - 90%RH (non-condensing)Suitable for indoor use |
|
Output Format |
Default Wiegand32(configurable to custom bit lengths)
Keyboard Output:4-digit or 8-digit password(default is 4 digits) |

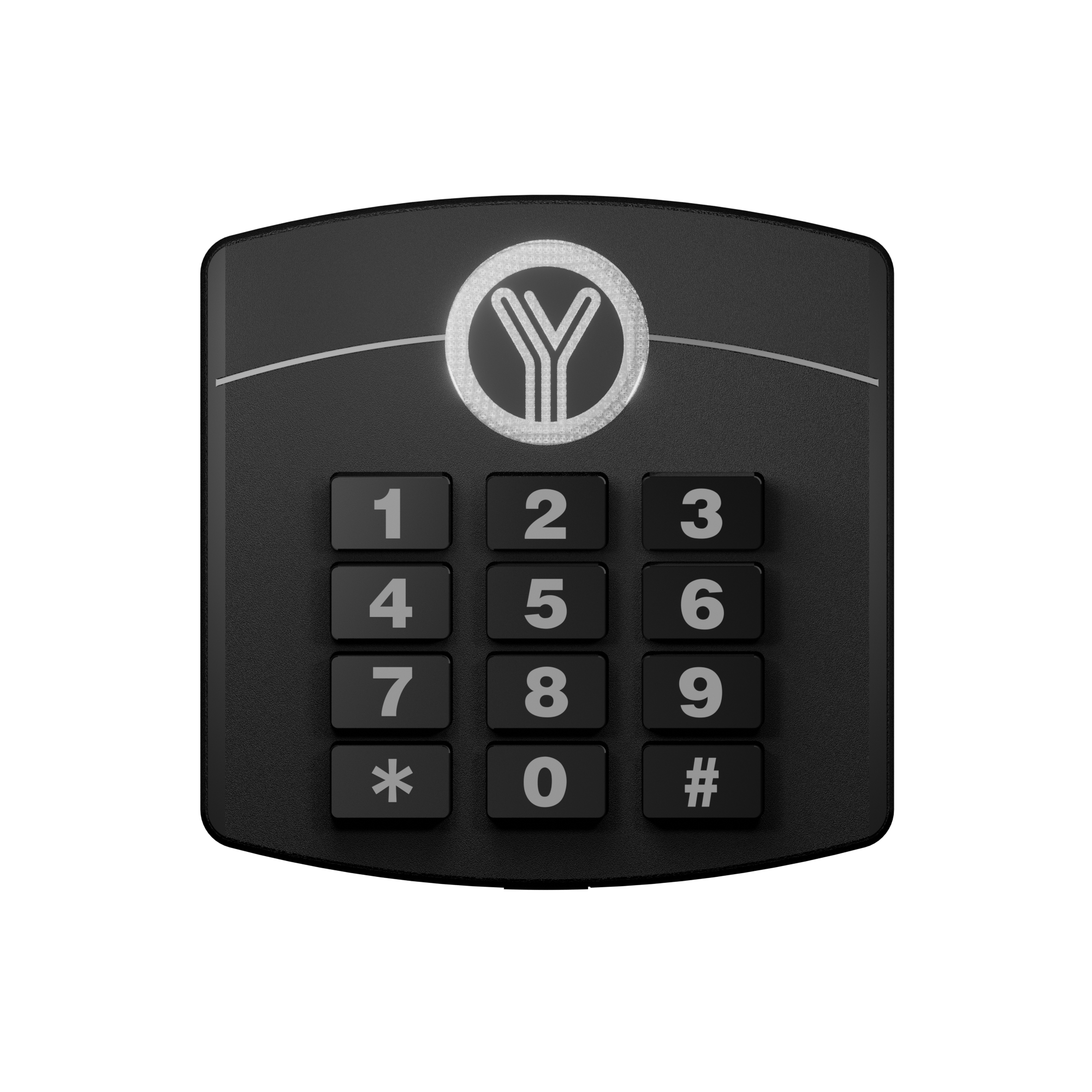

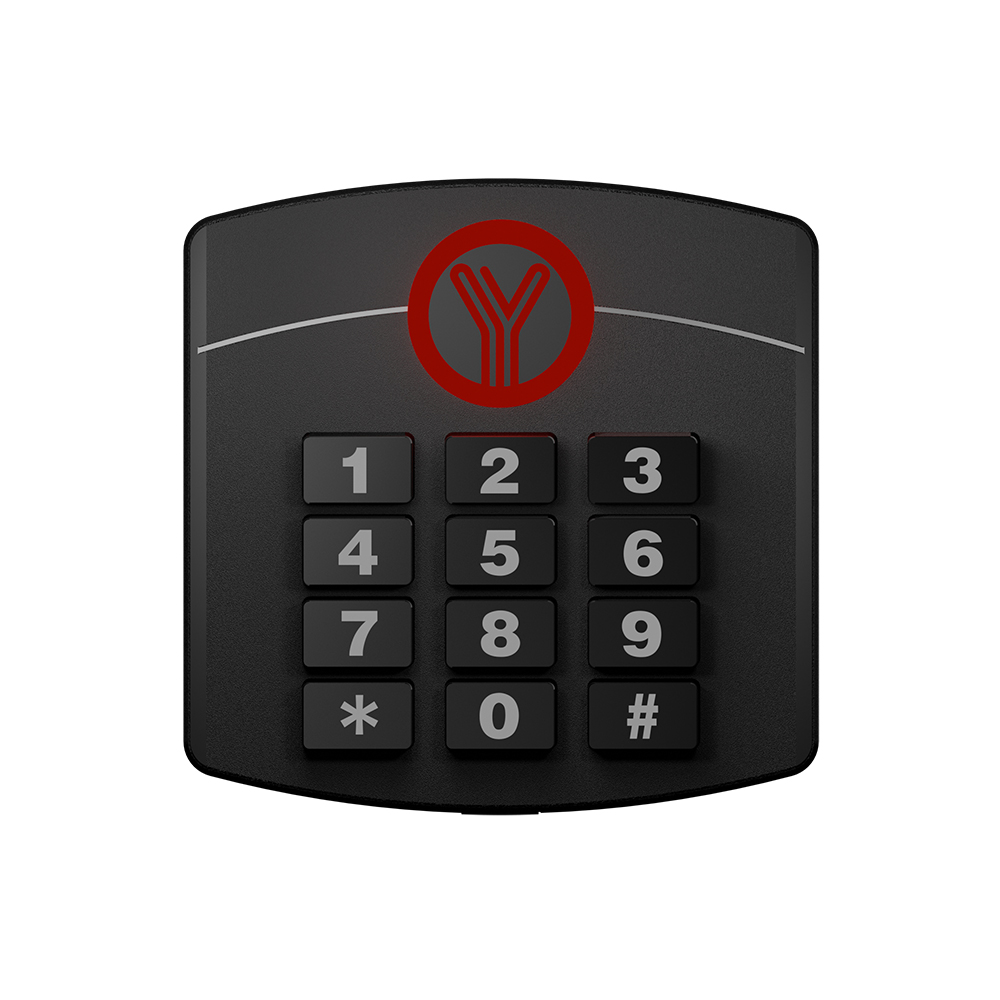

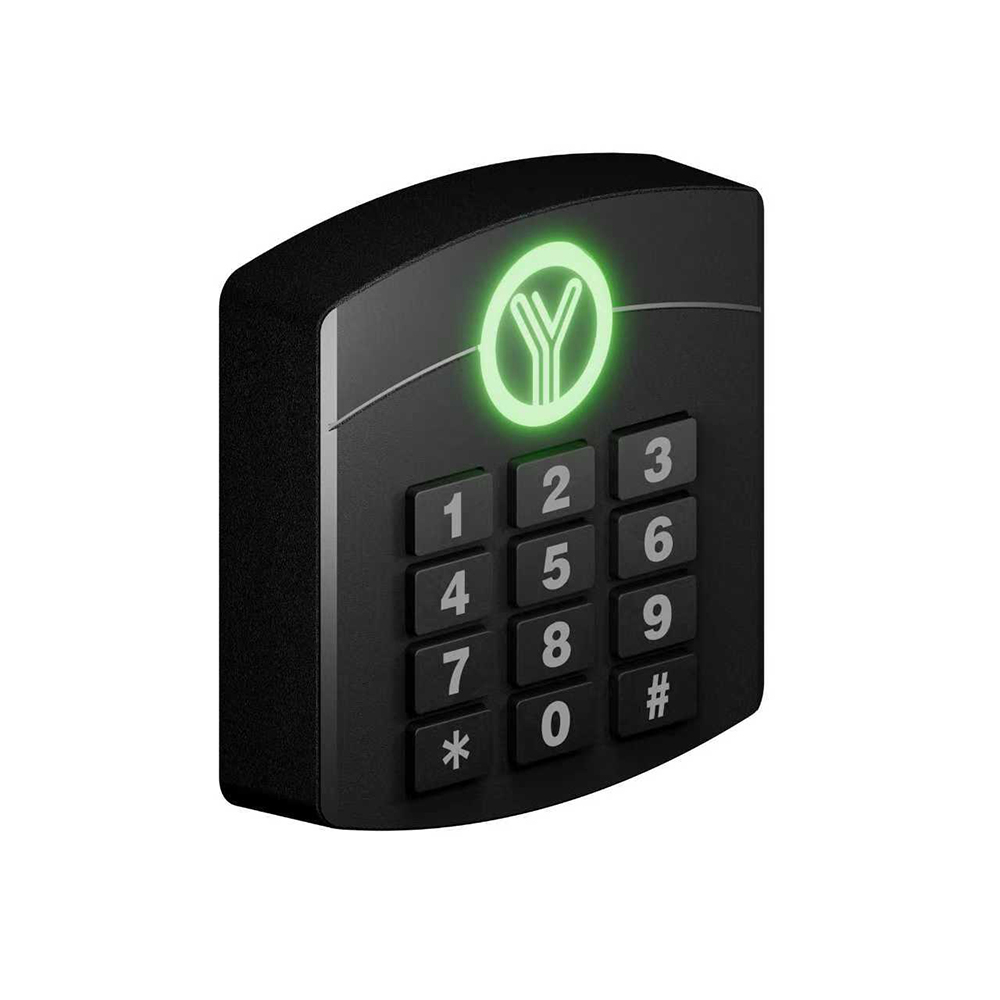

The card reader size allows it to adapt to various installation environments.
Equipped with an anti-consecutive read function to prevent repeated data reading from the same card without exiting, avoiding erroneous data output.
Utilizes one-card-one-key technology, significantly increasing the difficulty of cracking and duplication. Features an anti-tamper alarm output function, enhancing device security.
The card reader outputs in Wiegand format, making it compatible with most access control systems.
Supports IP55 protection rating.
Ensures long-term stable operation.
Utilizes industrial-grade main control chips and an independent data processing module, supporting 24/7 continuous operation.
The MTBF (Mean Time Between Failures) is ≥50,000 hours, with no system crashes or data packet loss during 365 days of continuous operation.
High recognition sensitivity.
Recognition distance error ≤ ±0.5 cm, single recognition response time ≤ 0.2 seconds. In high-frequency card-swipe scenarios (daily card swipes ≥ 1000 times), the recognition accuracy rate is ≥ 99.9%.
Strong anti-interference capability.
Complies with EMC electromagnetic compatibility standards (GB/T 17626), featuring anti-static and anti-RF interference capabilities. It can withstand electromagnetic interference from surrounding high-power appliances and wireless devices, ensuring stable recognition even in high-interference environments.
Adopts an isolated power supply design, with a normal operating voltage of 12V and an acceptable voltage fluctuation range of 8–16V, preventing recognition abnormalities caused by unstable power supply.
