280kg Mortise Mount Magnetic Lock(600Lbs)
Model:YM-280NM/YM-280NM-S
YM-280NM/YM-280NM-S Single door mortice magnetic lock is designed for wooden door, metal door, glass door and fireproof door. There is a set of lock status signal (NO/NC/COM) output contacts. YLl magnetic lock cores are produced with robotic laser welding technology, providing 2 to 3 times stronger impact resistance and torsional resistance than conventional production processes. The surface is treated with the internationally leading electroplating process and the lock itself has passed the 240-hour salt spray test in the national laboratory, achieving excellent performance of anti-oxidation, anti-rust and anti-corrosion. Our company offers a complete range of brackets for different locks.
Keywords:
Share to:
Product Parameter Parameter Description

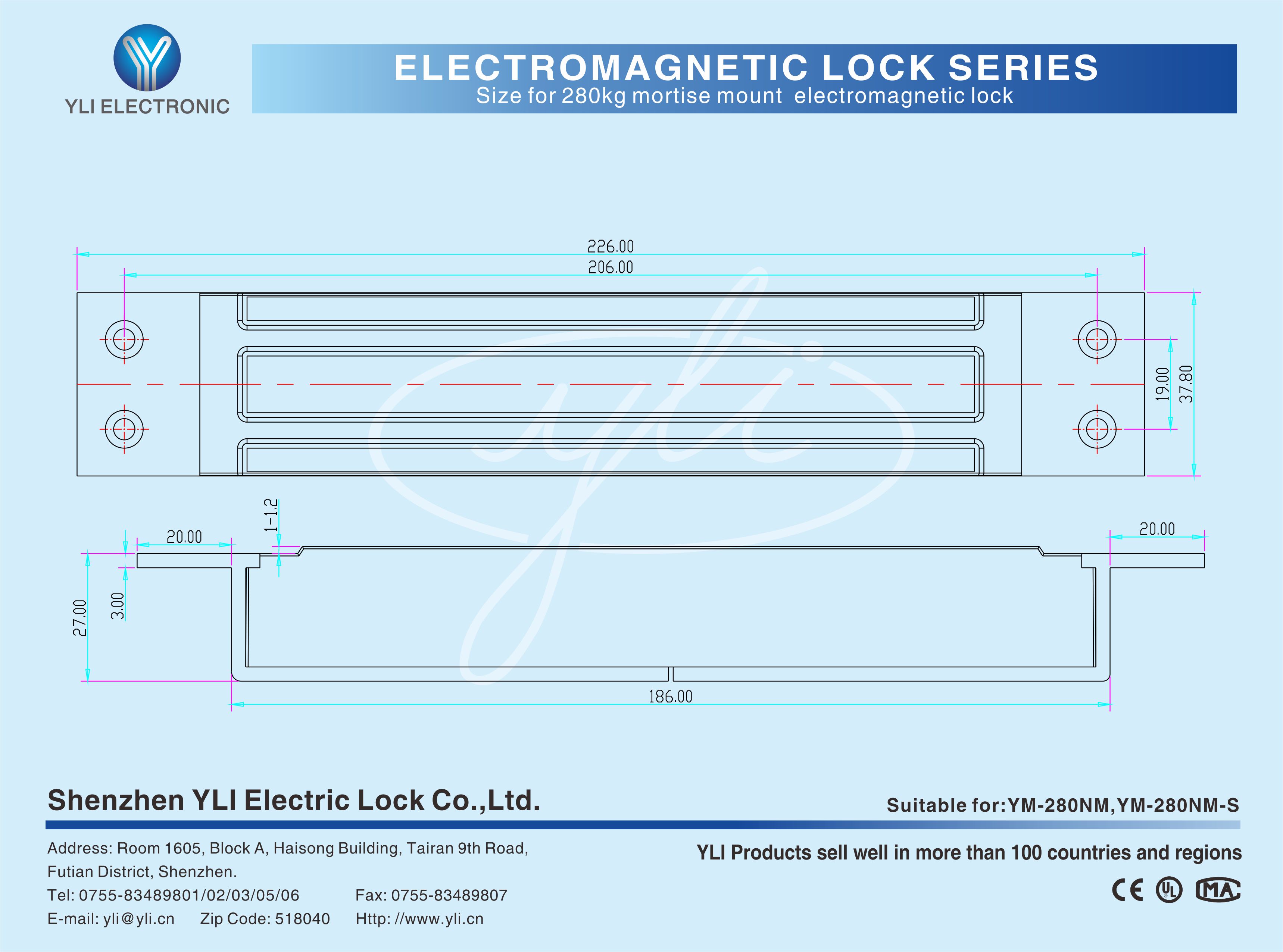

Dimension 226Lx37.8Wx27H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Input Voltage DC12V(Default); DC24V(Adjustable)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Lock Signal Output  NO while locking and NC for unlocking(Voltage<30VDC;Current<0.5A)(YM-280NM-S)
Holding Force 280kg(600Lbs)±10% direct pull
Operating temperature -30℃~+66℃ (-22~151F)
Operating humidity 0~95% relative humidity
Surface temperature Within 20℃ above ambient temperature
Salt spray test 240-hour exposure (National laboratory report)
Holding force after salt spray test Holding force attenuation within 5% after 240 hours of salt spray test
Durability Passed 1 million tests
Holding force after durability test Holding force attenuation within 5% after 1 million durability tests
Dynamic impact test 45J hammer continuous impact 5 times
Residual magnetism test Demagnetization and unlocking within 0.5 seconds
Overvoltage test 125% overload normal operation
Undervoltage test 85% input voltage pull force test
Housing treatment Anodized hard plating (500-hour salt spray test report)
Flame-retardant lock body Potting with flame-retardant resin (grade :V-0)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Weight 2.1kg
Certification CE-EMC CE-LVD  RoHS
Holding force:280kg±10%
Applicable temperature:-30℃~+66℃
Applicable humidity:0~95%(non-condensing)
Corrosion resistance: Passed 240-hour salt spray test
Holding force after salt spray test: Holding force attenuation within 5% after 240 hours of salt spray test
Durability: Passed 1 million tests
Holding force after durability test: Holding force attenuation within 5% after 1 million durability tests
Anti-residual magnetism: Unlock within 0.5 seconds
Overvoltage test: No damage after 24 hours at 125% of the rated voltage
Low-voltage test: Holding force remains unchanged at 85% of the rated voltage
Flame-retardant lock body: Potting with flame-retardant resin (grade :V-0)
Strength of lock core: Enhance the structural strength by laser welding
Warranty period: 3 years
Certified by multiple countries and in compliance with international safety standards
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
