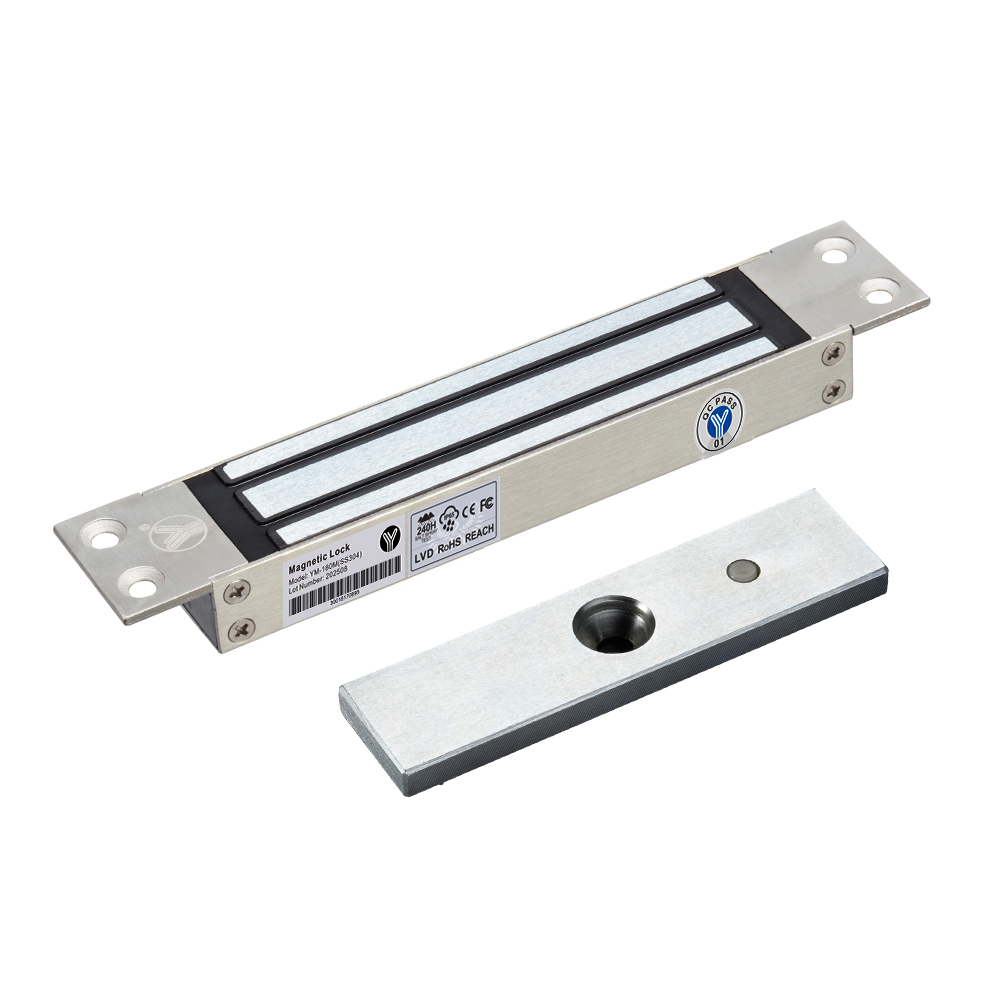

Single door electric lock with mortise mount is for glass door, wooden door, small size door with a holding force of 350lbs. The material is aluminum. Anti-residual magnetism is its selling point and makes electric lock more durable.

No Video User?manual Advisory Like it(0)

Keywords：

Prev:Double Door Magnetic Lock(350Lbs x2)YM-180ND

Next:Single Door Magnetic Lock with Big LED & Signal(350Lbs)YM-180(BLED)

Share to：

Technical Parameter

Advantage

Installation Diagram

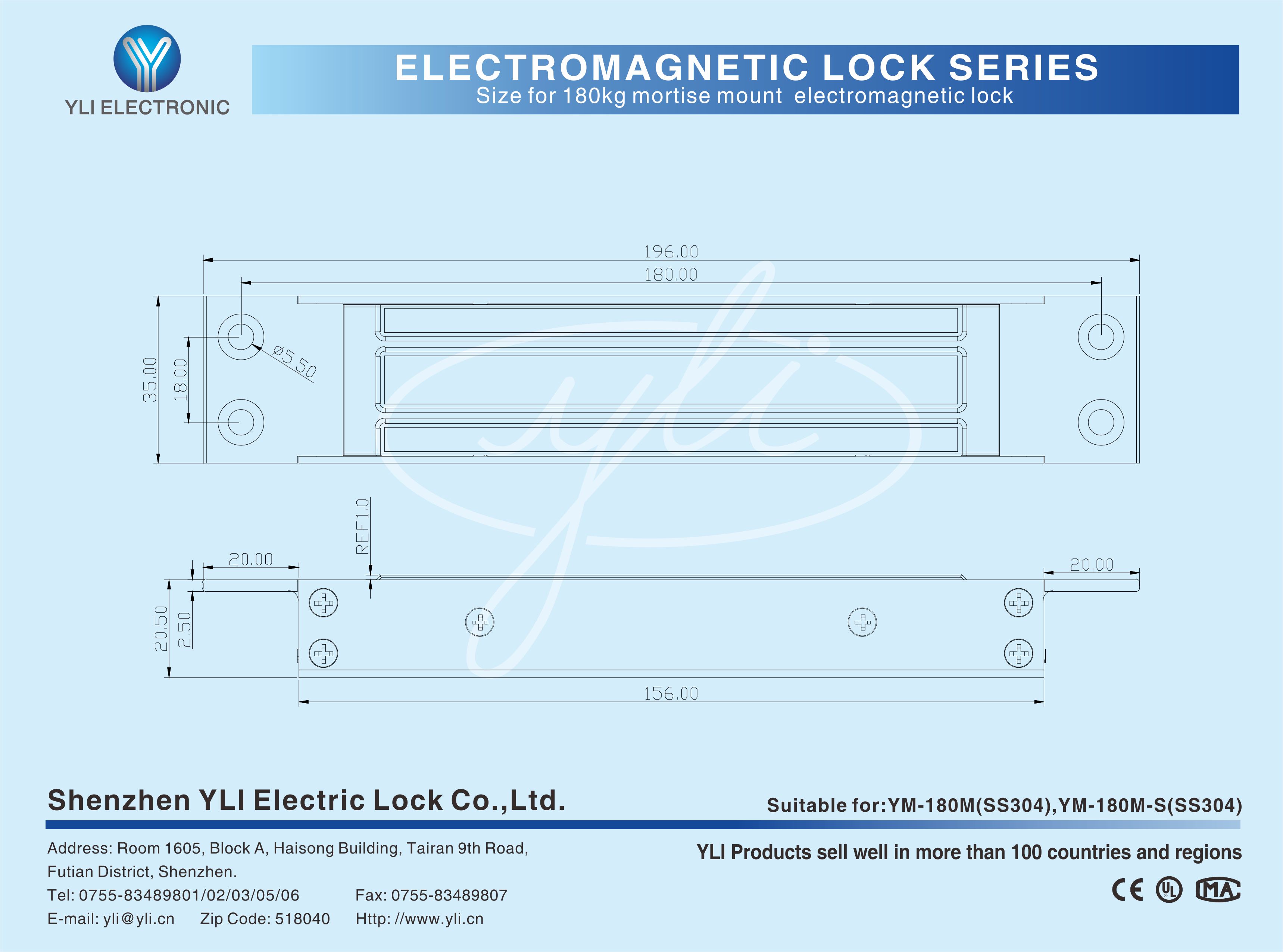

Dimension Diagram

Quality Guarantee

Statement

Packing

Accessory

Size	196Lx35Wx20.5H(mm)
Armature Plate Dimension	130Lx32x10H(mm)
Current	12V/400mA(±10%) ； 24V/200mA(±10%)
Input Voltage	DC12V(Default); DC24V(Adjustable)
Current	12V/400mA(±10%)；24V/200mA(±10%)
Signal output	Lock signal(NO/COM)(YM-180M-S(SS304))
Holding Force	180kg(350Lbs)±10% direct pull
Operating temperature	-30℃~+66℃ (-22~151F)
Operating humidity	0~95% relative humidity
Surface temperature	Within 20℃ above ambient temperature
Salt spray test	240-hour exposure (National laboratory report)
Holding force after salt spray test	Holding force attenuation within 5% after 240 hours of salt spray test
Durability	Passed 1 million tests
Holding force after durability test	Holding force attenuation within 5% after 1 million durability tests
Residual magnetism test	Demagnetization and unlocking within 0.5 seconds
Overvoltage test	125% overload normal operation
Undervoltage test	85% input voltage pull force test
Housing treatment	Anodized hard plating (500-hour salt spray test report)
Flame-retardant lock body	Potting with flame-retardant resin (grade :V-0)
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Cover finish	Stainless Steel
IP rate	IP-65
Weight	1.2kg
Certification	CE-EMC CE-LVD RoSH

Holding force：180kg±10%
Applicable temperature：-30℃~+66℃
Applicable humidity：0~95%(non-condensing)
Corrosion resistance: Passed 240-hour salt spray test
Holding force after salt spray test: Holding force attenuation within 5% after 240 hours of salt spray test
Durability: Passed 1 million tests
Holding force after durability test: Holding force attenuation within 5% after 1 million durability tests
Anti-residual magnetism: Unlock within 0.5 seconds
Overvoltage test: No damage after 24 hours at 125% of the rated voltage
Low-voltage test: Holding force remains unchanged at 85% of the rated voltage
Flame-retardant lock body: Potting with flame-retardant resin (grade :V-0)
Strength of lock core: Enhance the structural strength by laser welding
Warranty period: 3 years
Certified by multiple countries and in compliance with international safety standards

Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
