European Standard Electric Strike
There are 13 Similar products,Comparison

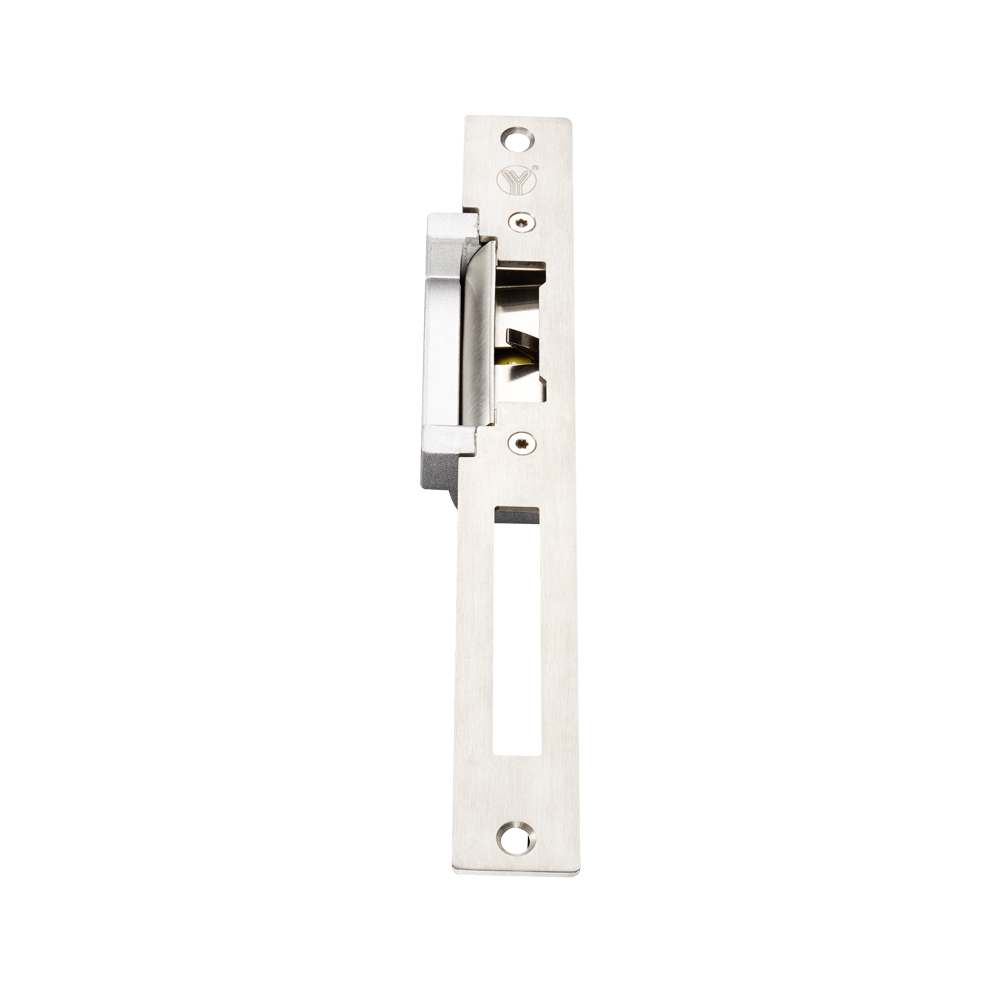

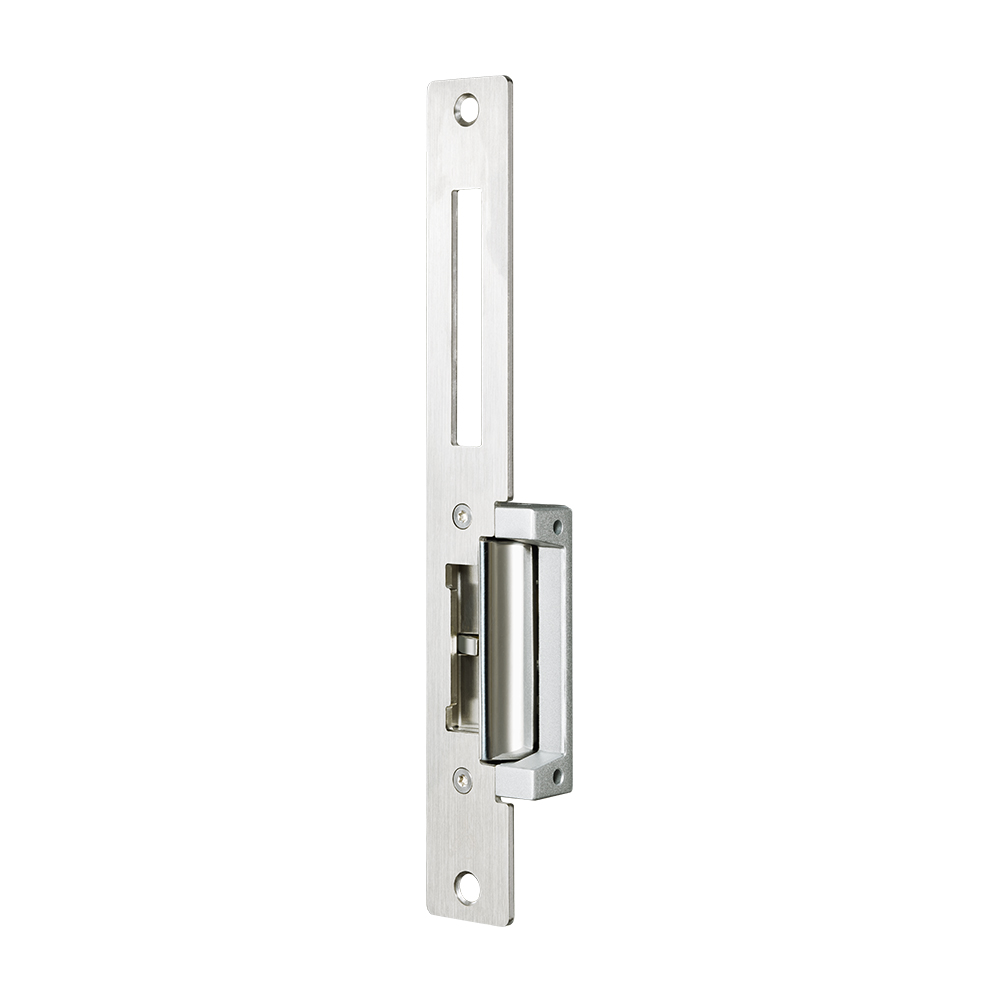

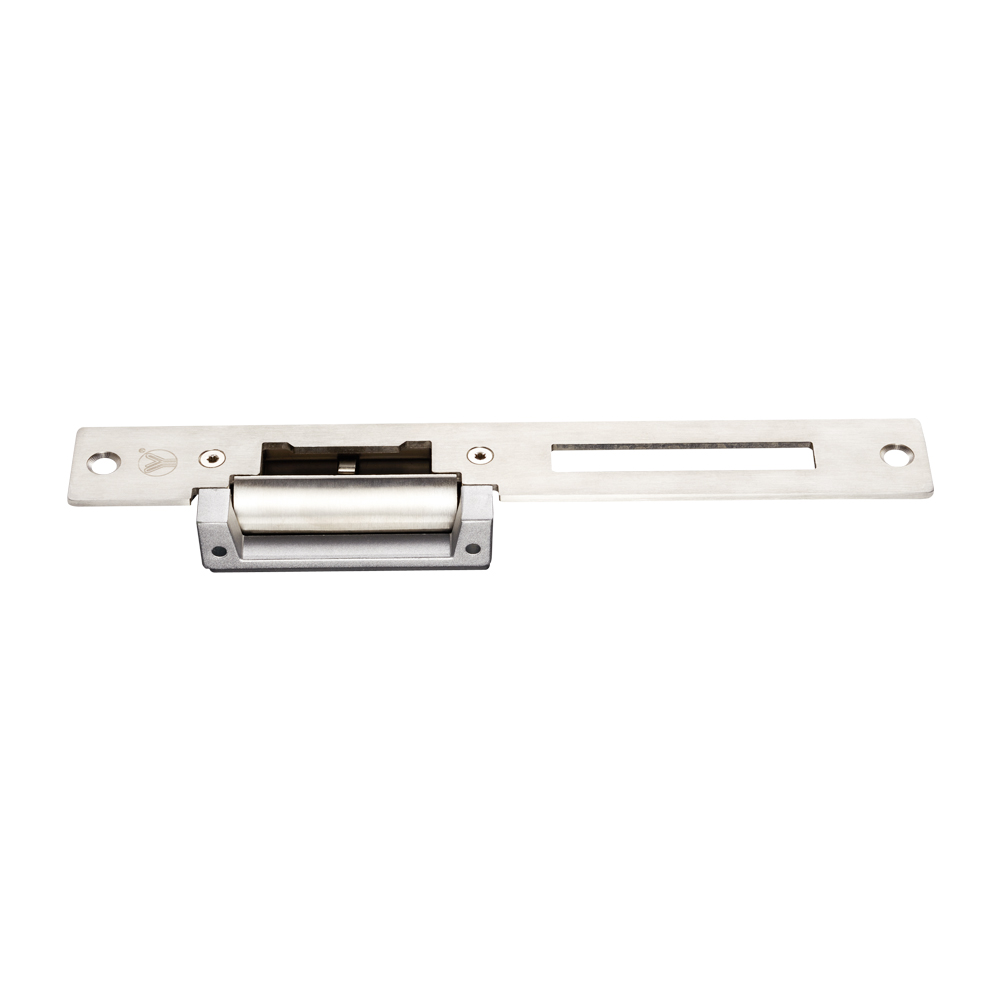

Long Type European Electric Strike W/Signal
Model:YS-138LK-S
YS-138LK-S is long type electric strike with signal output, which specially designed for the application of European and American type electric mechanical locks with square latch tongues. It is suitable for metal door, wooden door, PVC door and so on. It can achieve dual functions of "electric control" for daily use and "manual" opening in emergency. The internal movable parts are effectively integrated into one, so the structure is firm and the performance is stable. Also it can be selected as (NO, Fail-Secure) or (NC, Fail-Safe).
Keywords:
Share to:
Product Parameter Parameter Description
Lock Size 250Lx43.7Wx35H(mm)
Keeper  stainless steel precision casting
Static strength test approx. 1300kg (third-party report)
Voltage  DC12V (Need Order DC24V)
Current  12V/320mA(±10%);24V/160mA(±10%)
Feature  Fail Safe (Factory default);Fail Secure (Adjustable)
Suitable For  Wooden Door,Metal Door,PVC Door
Signal Output  Door status Output,NO/NC/COM
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Protection performance  With Diode Surge Absorption Device
Optional Accessories  YS-308
Weight  0.42kg
Patent No. 201320470904.1
Certification CE-EMC CE-LVD FCC RoHS REACH WEEE
Static strength test approx. 1300kg (third-party report).
Special design, NO/NC Adjustable
Designed for Metal Frame drill a hole,then install it directly.
Testing to 500000 cycles.
High-Temperature Painted,Durable and Beautiful  Artical.
CE Certificate by European Union, MACertificate by China Public Security office.

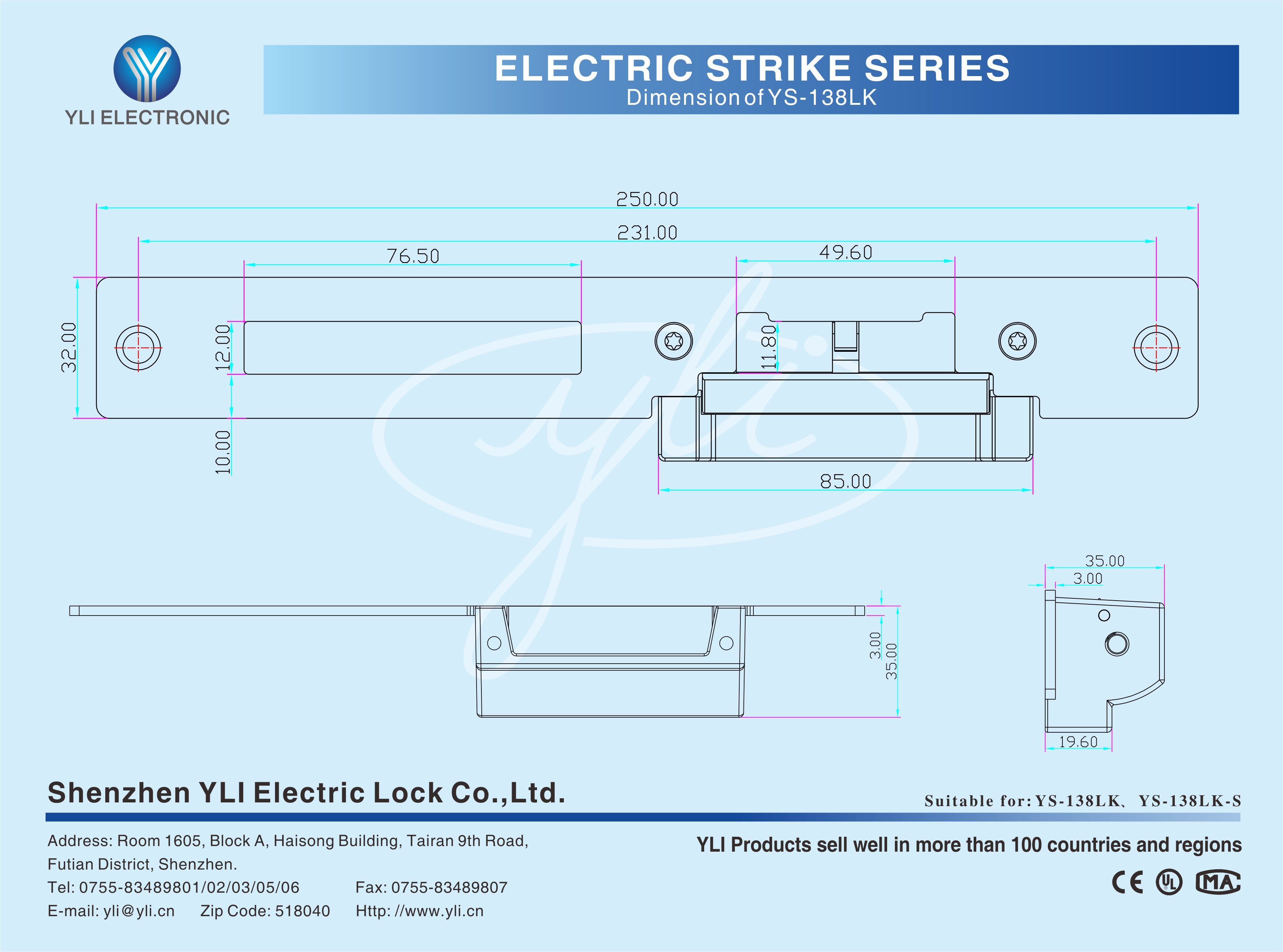

YS-138LNO NC.gif

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 30
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 12.6
