| Product Parameter |
Parameter Description |

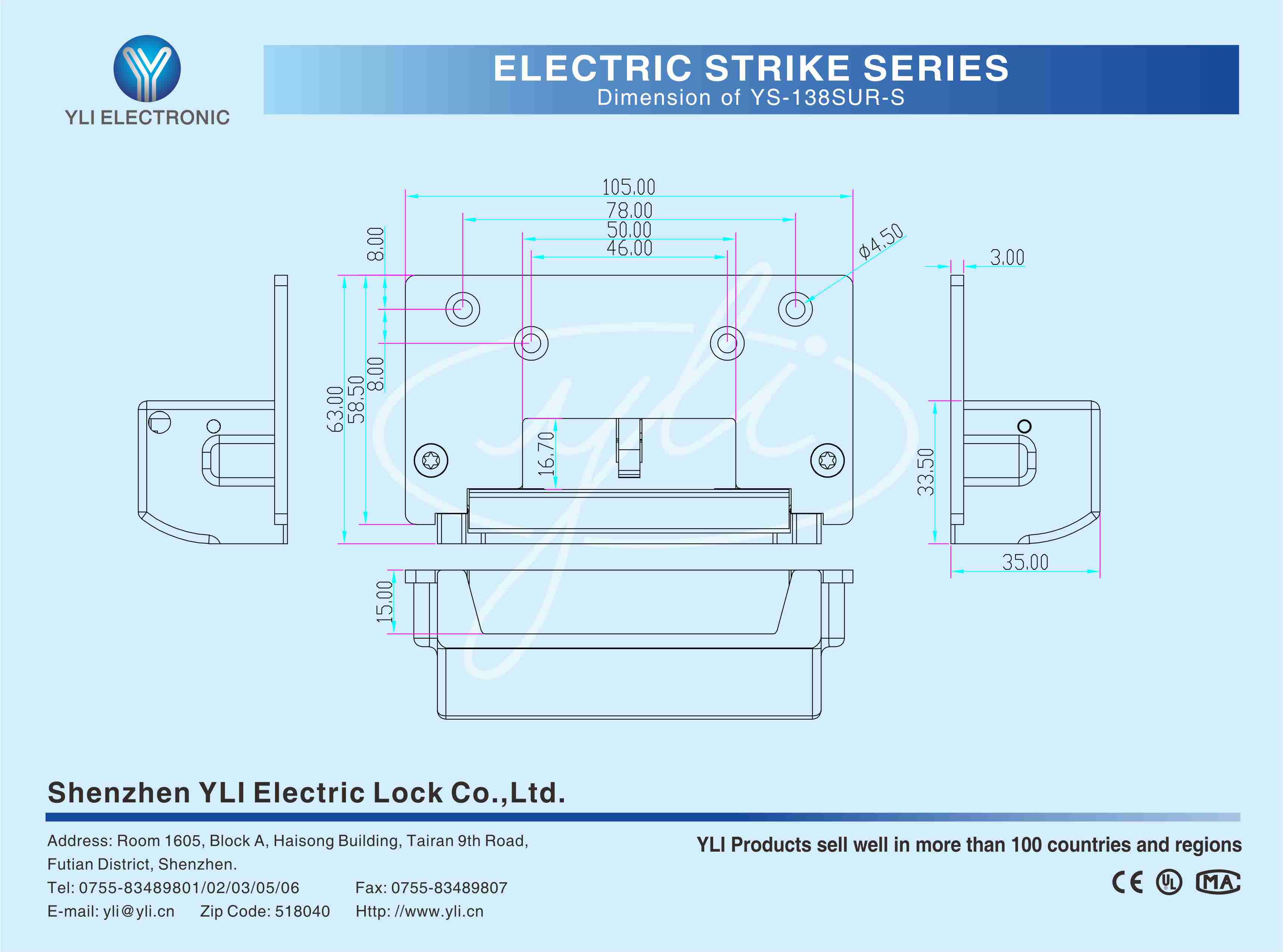

| Dimensions |
L105xW63xH35(mm) |
| Keeper depth |
12mm |
| Static strength test |
approx. 800kg (third-party report) |
| Keeper width |
50mm |
| Voltage |
DC12V(DC 24V customizable) |
| Current |
12V/280mA(±10%); 24V/140mA(±10%) |
| Door signal output |
Door status signal output;NO/NC/COM contacts |
| Installation method |
Surface mounted (use with mechanical locks) |
| Application |
Wooden doors, metal doors, fire doors |
| Surface temperature |
Below ambient temperature+20℃ |
| Applicable temperature |
-20°C~+55°C(-4-131°F) |
| Applicable humidity |
0~95%relative humidity |
| Material of housing |
Zinc alloy (high temperature painted) |
| Protection performance |
With Diode Surge Absorption Device |
| Material of faceplate |
SUS304 stainless steel (surface brushed) |
| Weight |
0.4kg |
Surface mounted electric strike, no need to slot on door
frame, easy to install; with door signal output
Static strength rating of 1000 pounds-force (4448 N)
Dynamic strength rating of 50 footpounds-force (68 J)
Solenoid valve has been tested 250,000 times (UL laboratory)
More than 500,000 times aging test
NC/NO adjustable
Factory default: NC mode(Fail safe)
SUS304 stainless steel faceplate,
precision cast SUS304 high-strength strike keeper
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
