| Product Parameter |
Parameter Description |
| Feature |
Fail Safe |

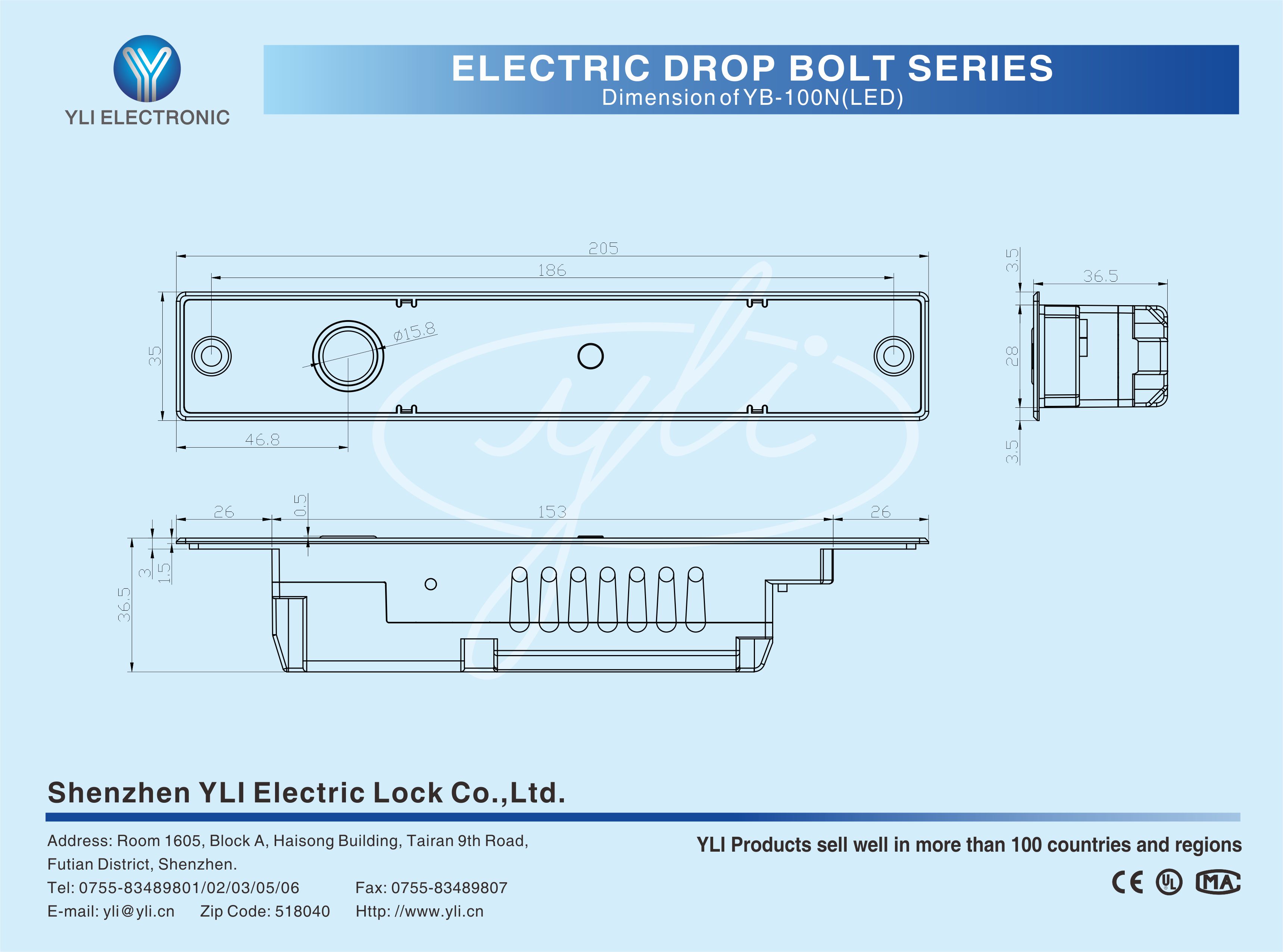

| Face Plate |
205Lx35Wx36.5H(mm) |
| Strike |
90Lx25Wx2H(mm) |
| Voltage |
12VDC/24VDC(Adjustable) |
| Current |
Start12V/ 980mA(+10%),Standby 12V/ 180mA
Start24V/ 650mA(+10%),Standby 24V/ 120mA |
| Signal Output |
8 Line:Door Status Signal:NO、COM ; Lock Status Signal:NO、NC、COM |
| LED |
Green for unlocking while red for locking |
| Time Delay |
0/3/6/9sec adjustable |
| Induction Distance |
≤8mm |
| Bolt structure |
304 stainless steel integral structure |
| Static strength test |
approx. 1300kg (third-party report) |
| Operating temp |
-25℃～+55℃(14~131F) |
| Operating Humidity |
0～90%(non-condensing) |
| Suitable For |
Wooden Door,Glass Door,Metal Door |
| Patent Number |
ZL2021301764386 |
| Weight |
0.55kg |
| Certification |
CE-EMC CE-LVD FCC RoHS |
Invasion resistant circuit,stop magnetic reed inspection automatically as locking and vandal resistant
Intelligent circuit,checking if locking properly
Time delay setting for automatic locking
12VDC/24VDC(Adjustable)
LED shows status of lock
Horizontal or vertical installation
Diameter of stainless steel solid bolt is 16mm and 17.5mm as length
Decorating-plate-in lock body,easy installation
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
