Electric Bolt
There are 42 Similar products,Comparison
Electric Bolt with Buzzer
Model:YB-700B(LED)-BZ
YB-700B(LED)-BZ is an Fail secure electric bolt with buzzer, All-metal construction. with 304 stainlesssteel solid bolt and 1500kg holding force. The Door signal is NC.lt can operate at thetemperature of 60 'C or -40'C below zero based on the all-metal linkage parts. Withthe diversified design of durable magnetic valve, special photoelectric control system,ultra-low temperature and power consumption design, anti-intrusion and smartcircuit.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Secure

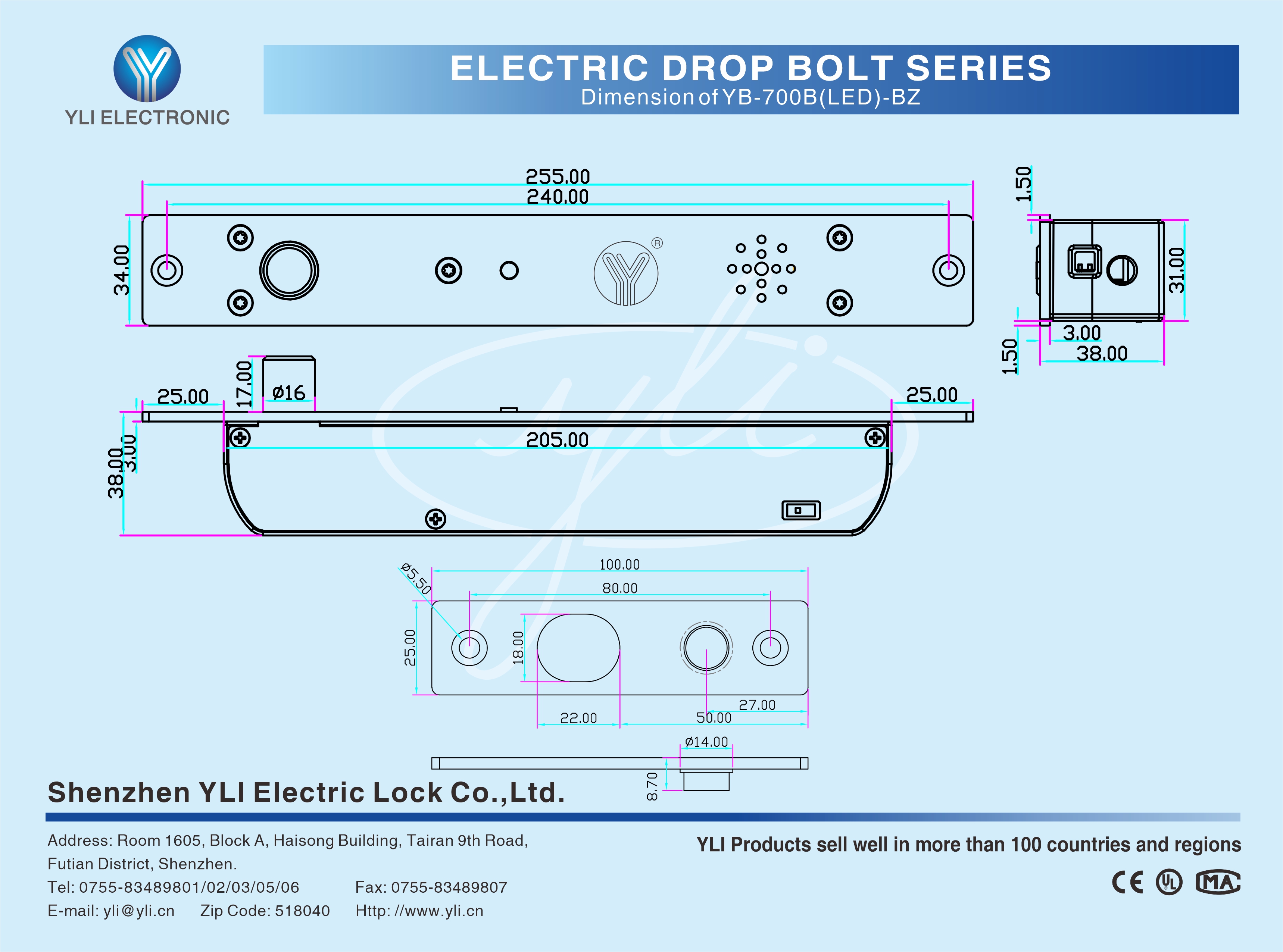

Face Plate 255Lx34WX38H(mm)
Strike 100Lx25Wx3W(mm)
Bolt 16(length)*16(diameter)(mm)
Voltage 12-24VDC
Start Current 1200mA
Standby Current 280mA
Bolt structure 304 stainless steel
Static strength test approx. 1500kg (third-party report)
Suitable For
Heavy door,Wooden door,meta doorl,fireproof door,glass door
LED Light on indicates locked, light off indicates unlocked
Autolock Time Delay 0,3,6,9sec
Signal Output Lock signal:NO/NC/COM
Door signal:NO/COM
Surface Temp Low Temperature
Detection Distance Within 8mm
Special Designed Tested to 500000 cycles
Material 304 stainless steel, wire draw finishing
Certification MA CE-EMC CE-LVD
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life  with 500000 Operations.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Lock signal:NO/NC/COM;Door signal:NO/COM.
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 30
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 30
