| Product Parameter |
Parameter Description |
| Feature |
Fail Safe |
| Lock Body |
220Lx34Wx38H(mm) |
| Magnetic Plate |
105Lx25Wx3H(mm) |
| Bolt |
16(length) * 16(diameter)(mm) |
| Voltage |
12VDC±1 0 % |
| Start Current |
1200mA |
| Standby Current |
200mA |
| Bolt structure |
304 stainless steel |
| Static strength test |
approx. 1600kg (third-party report) |
| Signal Output |
Door signal: NO/COM |
| Suitable For |
Wooden door, metal door, fireproof door, glass door |
| Detection Distance |
Within 8mm |
| Material |
304 stainlesssteel , wire draw finishing |
| Weight |
1.0kg |
| Certification |
MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 Operations.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

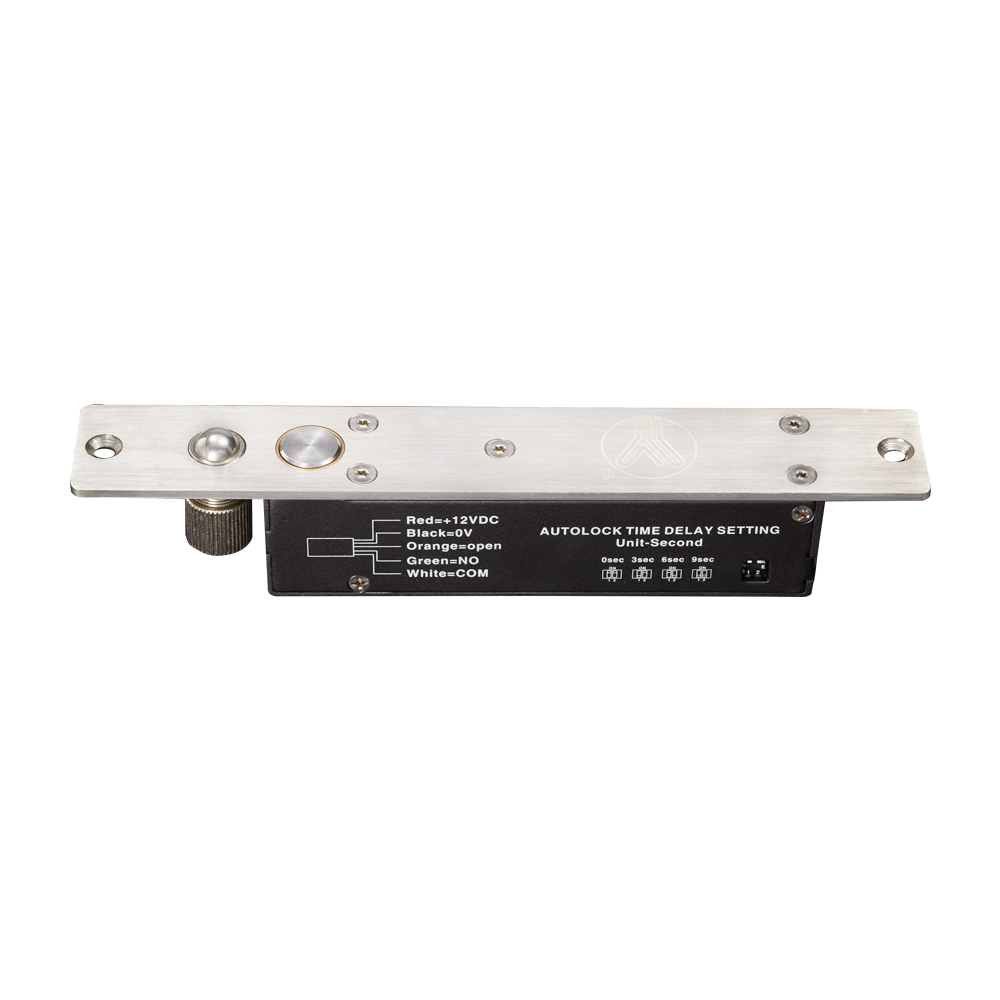

Autolock Time Delay: 0,3,6,9sec.
Lock signal:NO/NC/COM;Door signal:NO/COM.
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature，
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
