Electric Bolt
首頁  ?  Home  ?  Products  ?  Electric Bolt
There are 42 Similar products,Comparison

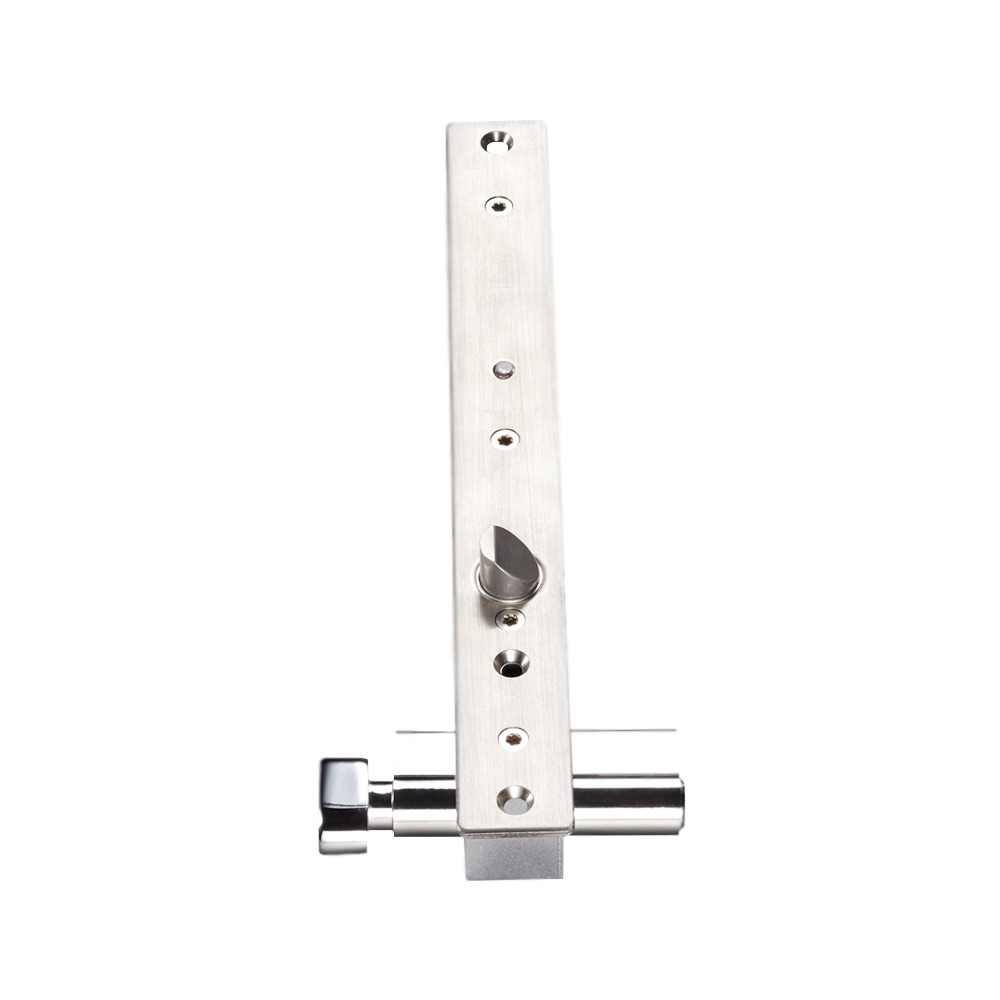

Fail Secure Electric Bolt W/Cylinder
Model:YB-600C(LED)
YB-600C (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions and special latch bolt Design.The special design of all-metal linkage parts results it can bear with the temperature of 60 ℃ or?-20 ℃ below zero .Special adopts 304 stainless steel Bolt by CNC lathe, can withstand 1400kg holding force.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Secure
Lock Body 270Lx30WX48H(mm)
Magnetic Plate 100Lx25Wx2.5H(mm)
Bolt 16(length)*16(diameter)(mm)
Voltage DC12V
Start Current 1200mA
Standby Current 200mA
LED Light on indicates locked, light off indicates unlocked
Autolock Time Delay 0,3,6,9sec
Signal Output Lock signal(NO/NC/COM)(need order door signal)
Static strength test approx. 1400kg (third-party report)
Induction Distance Within 8mm
Operating temp -20℃~+60℃(-4~140℉)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face place material 304 stainless steel, wire draw finishing
Suitable For Wooden door , metal door , fireproof door , glass door
Weight 1.6kg
Certification MA CE-EMC CE-LVD FCC-VOC REACH WEEE



Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life  with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Door statue signal output contact NC,NO,COM
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 10
Packing Size(L*W*H)(cm) 52*29*12
Gross Weight(KG) 16.00
