Electric Bolt
首頁  ?  Home  ?  Products  ?  Electric Bolt
There are 42 Similar products,Comparison

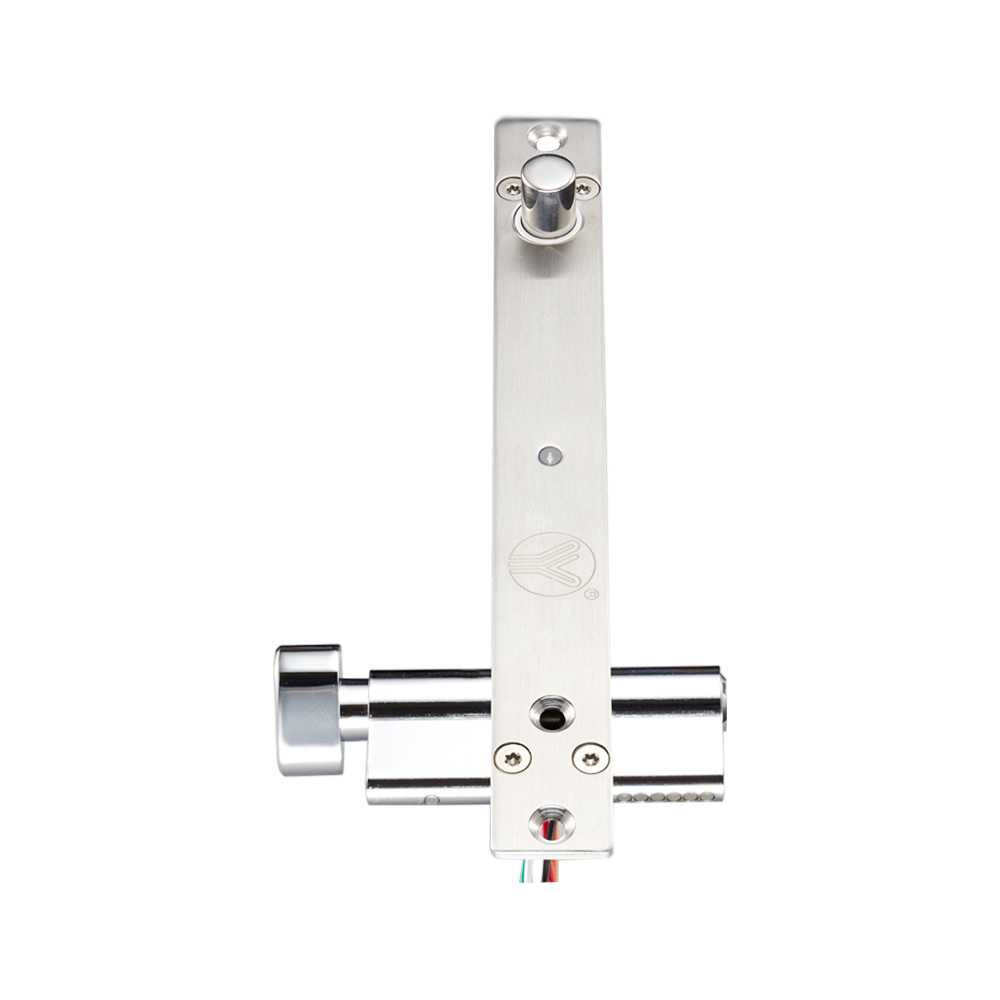

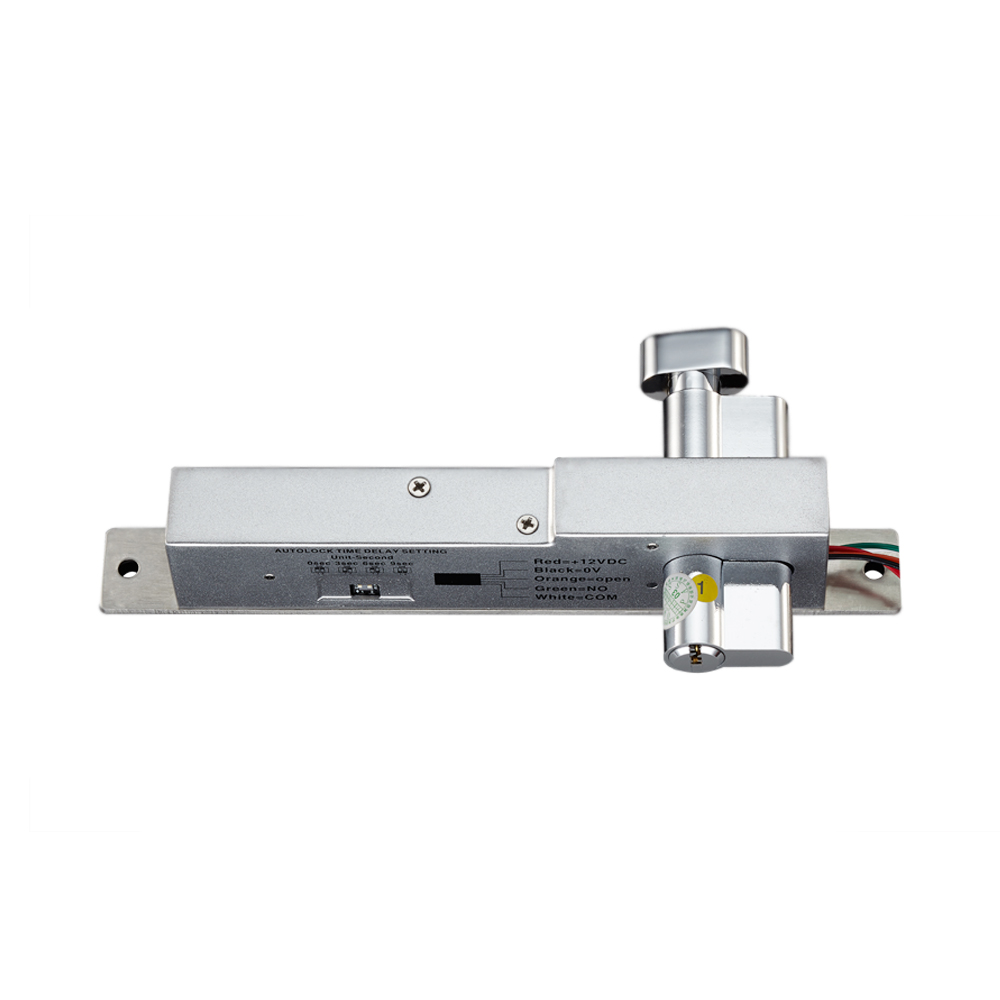

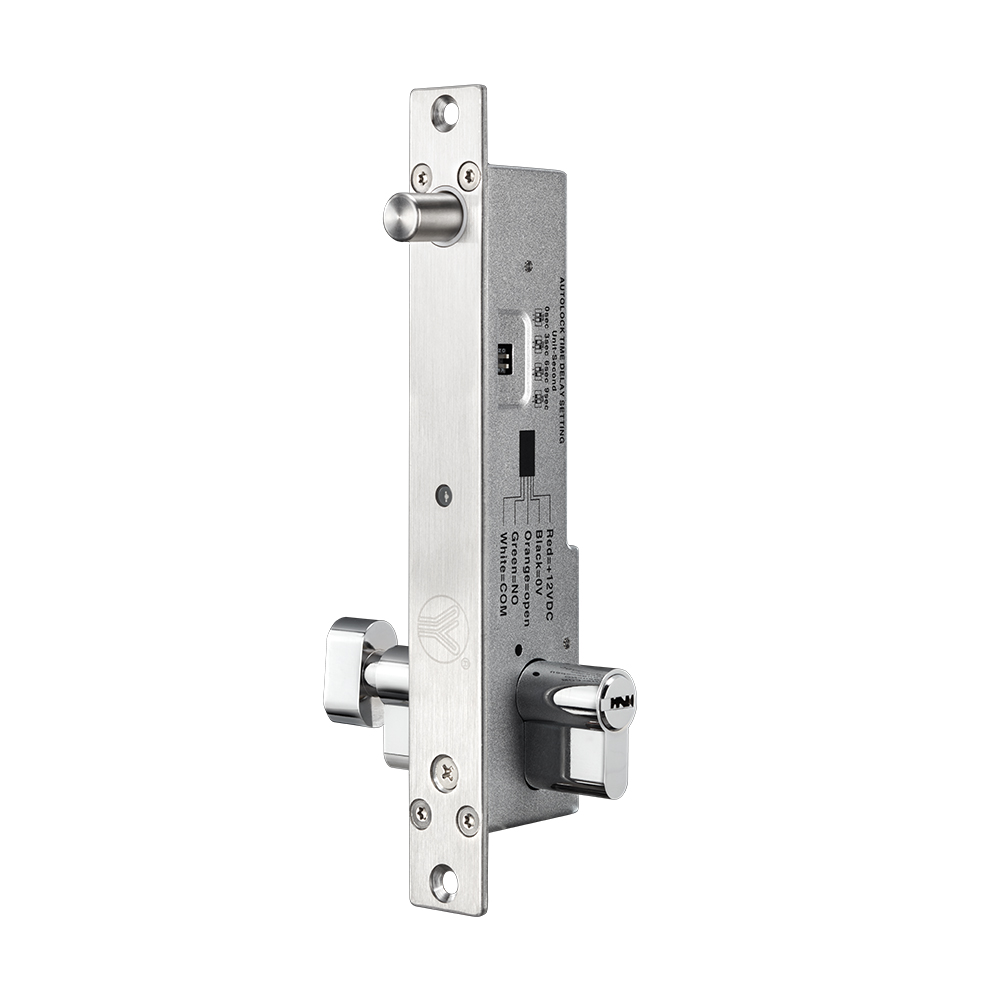

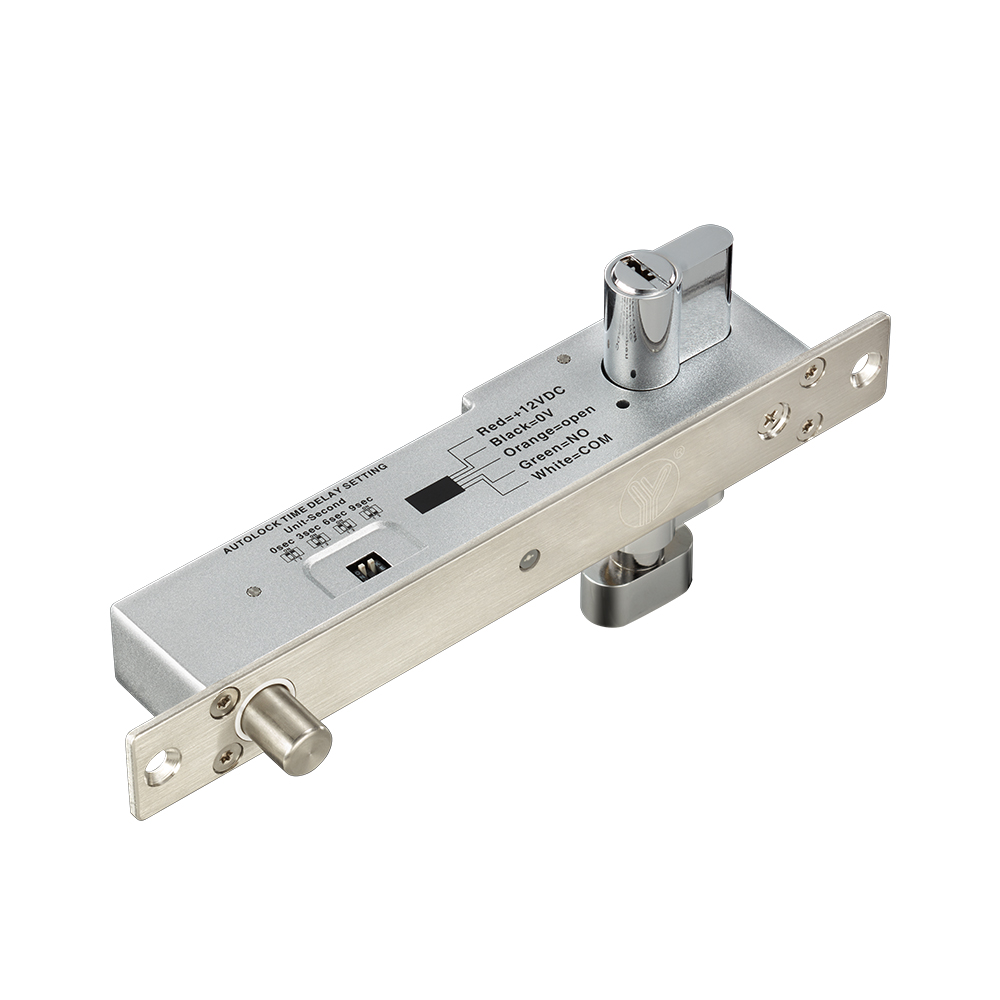

Fail secure sturdiness electric bolt with cylinder
Model:YB-500C(LED)
YB-500C (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions. The bolt has 950kg holding force adopts high class stainless steel material.the all-metal linkage parts contribute the bolt tobe worked the temperature of 60 ℃ or -40 ℃.The reliable magnetic valve and special photoelectric control system, Cryo Fundamentals and power consumption design, Intelligent circuit ,reveal its feature of multifunctional and creativeness
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Secure

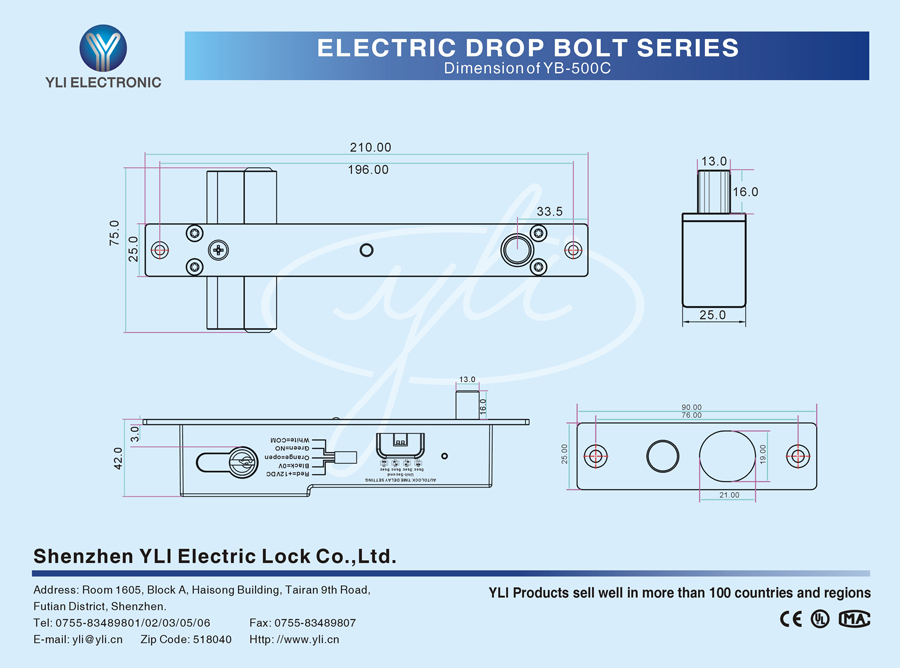

Face Plate 210Lx25WX42H(mm)
Strike 90Lx25Wx3H(mm)
Bolt 16(length)*13(diameter)(mm)
Voltage 12VDC(24VDC need order)
Start Current 960mA
Standby Current 180mA
Autolock Time Delay 0,3,6,9sec
Door statue signal output contact NO、COM
Cylinder One side is key, another side is knob
Suitable For wooden door,metal door, PVC door
Surface Temp Low Temperature
Induction Distance 8mm
Bolt structure 304 stainless steel
Static strength test approx. 950kg (third-party report)
LED Light on indicates locked, light off indicates unlocked
Operating temp -20℃~+60℃(-4~140℉)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face place material 304 stainless steel, wire draw finishing
Weight 1.0kg
Patent No. ZL2014205328215
Certification MA CE-EMC CE-LVD FCC RoHS REACH WEEE



Photoelectricity Controling,no machanical defect.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Long Life  with 500000 cycles.
Special photoelectricity control,three steps current application.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Working with cylinder cannot be copied,do increase security.
The humanized design of Led helps to indicate the working status of lock.
The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
With complete accessories,available for any doors.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
