Electric Bolt
首頁  ?  Home  ?  Products  ?  Electric Bolt
There are 42 Similar products,Comparison

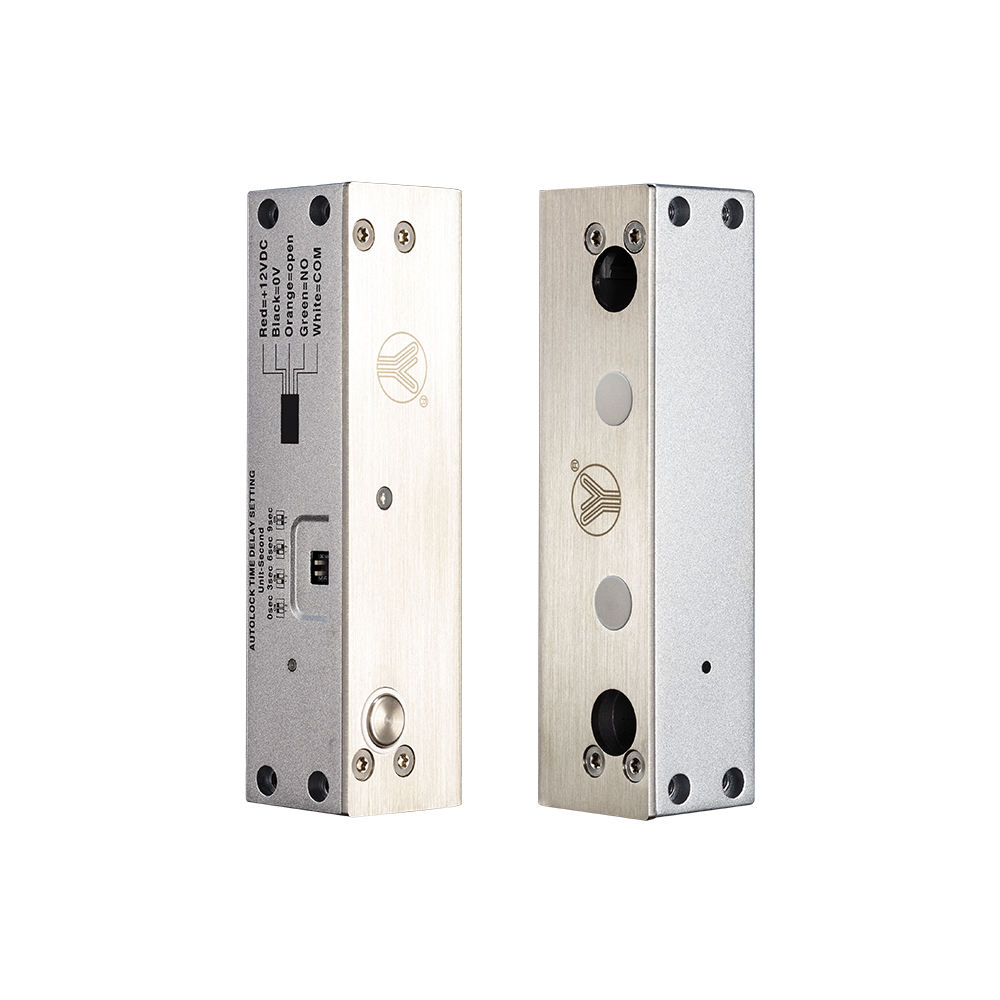

Fail safe electric bolt is for fully frameless glass door
Model:YB-500U(LED)
YB-500U (LED) is an all-metal construction electric bolt .specially designed for fully frameless glass doors. It can be worked bear the temperature of 60 ℃ or -30 ℃ The bolt of the lock is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design. With the multiple designs of durable magnetic valve, special photoelectric control system, LED Indicator ,Door statue signal output contact,ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Safe

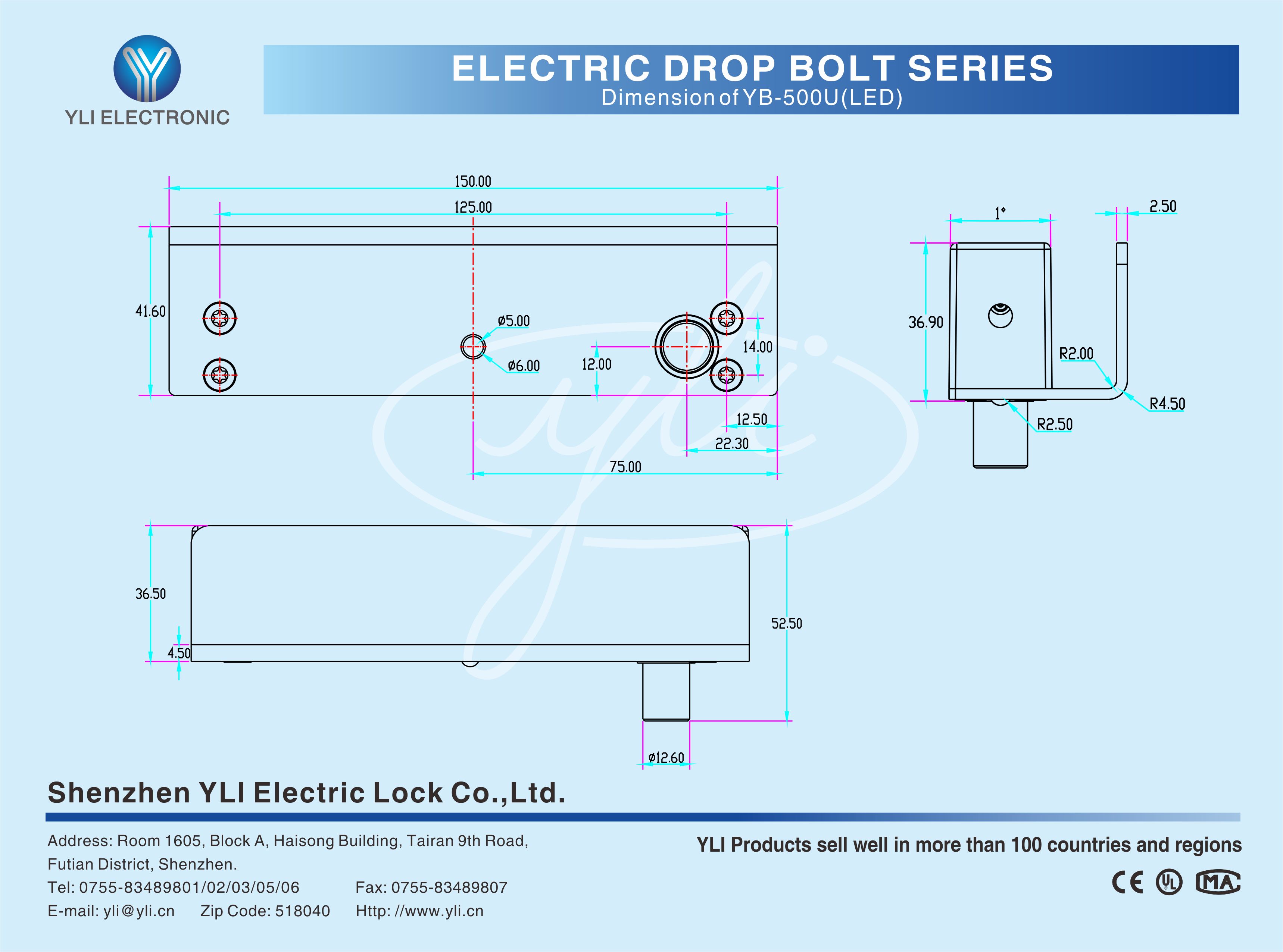

Face Plate 150Lx40WX37H(mm)
Bolt 16(length)*13(diameter)(mm)
Voltage DC12V(DC24V)
Start Current 960mA
Standby Current 180mA
Solid Bolt polishing housing, 1000kg Holding Force
Suitable For 12mm Electric Bolt  For Fully Frameless Glass Door
Signal Output Door status Output,NC/COM
LED Light on indicates locked, light off indicates unlocked
Surface Temp Low Temperature
Induction Distance 8mm
Operating temp -30℃~+60℃(-22~140℉)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face place material 304 stainless steel, wire draw finishing
Weight 1.36kg
Certification CE-EMC CE-LVD FCC-VOC REACH WEEE
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life  with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact(NC.COM).
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 10
Packing Size(L*W*H)(cm) 52*29*12
Gross Weight(KG) 13.6
