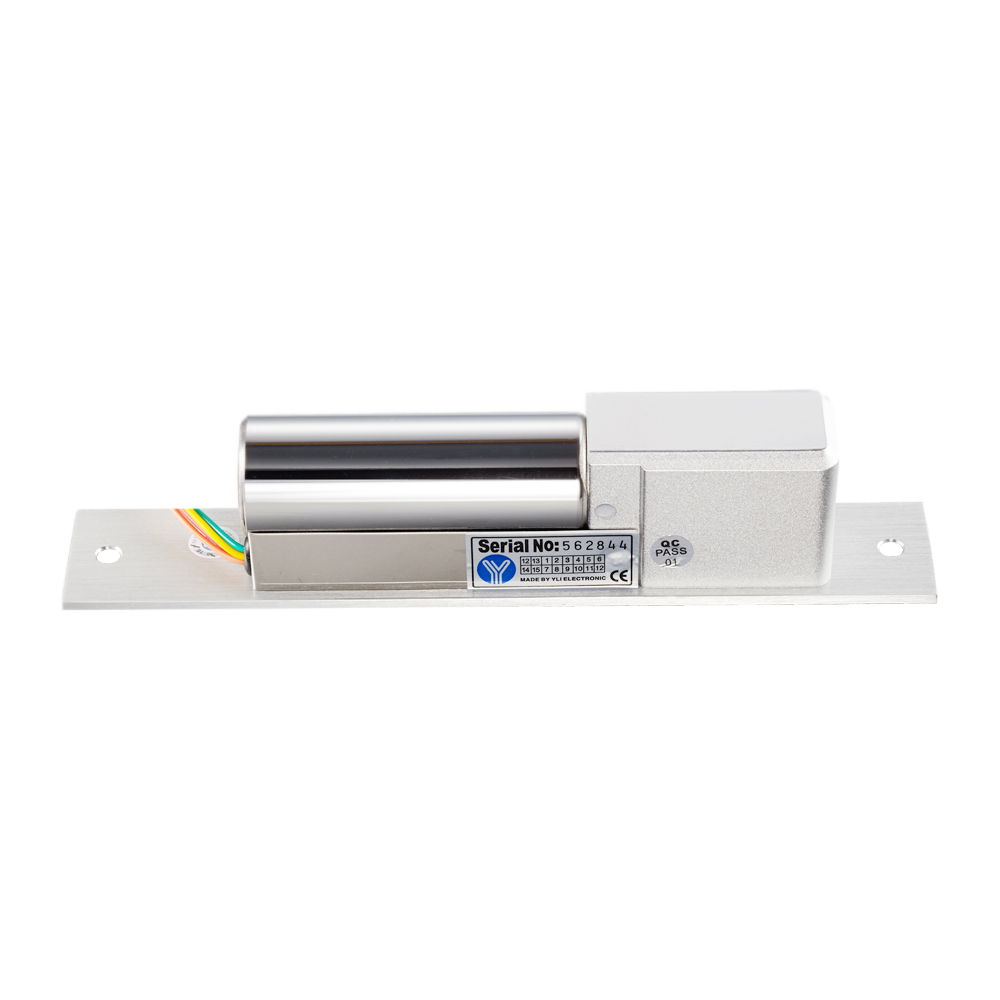

Fail safe electric bolt W/signal
Model:YB-100+(LED)
YB-100+(LED) is a fail safe electric bolt .add the LED indicator?,suitable for glass door , wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Safe
Face Plate 205Lx35WX41H(mm)
Strike 90Lx25Wx2H(mm)
Bolt 16mmDIA,stainless steel 16mm throw
Voltage 12VDC
Start Current 900mA
Standby Current 110mA
Suitable For Wooden Door,Glass Door,Metal Door,Glass Door
Signal Output Door status Output,NO/COM
Surface Temp Low Temperature
Induction Distance 8mm
Operating temp -10~+55℃(14~131F)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 cycles
Face place material High Aluminum
Weight 0.7kg
Certification CE-EMC CE-LVD FCC-VOC REACH WEEE
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life  with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Door statue signal output contact(NO.COM).
Double protection for loading current.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.

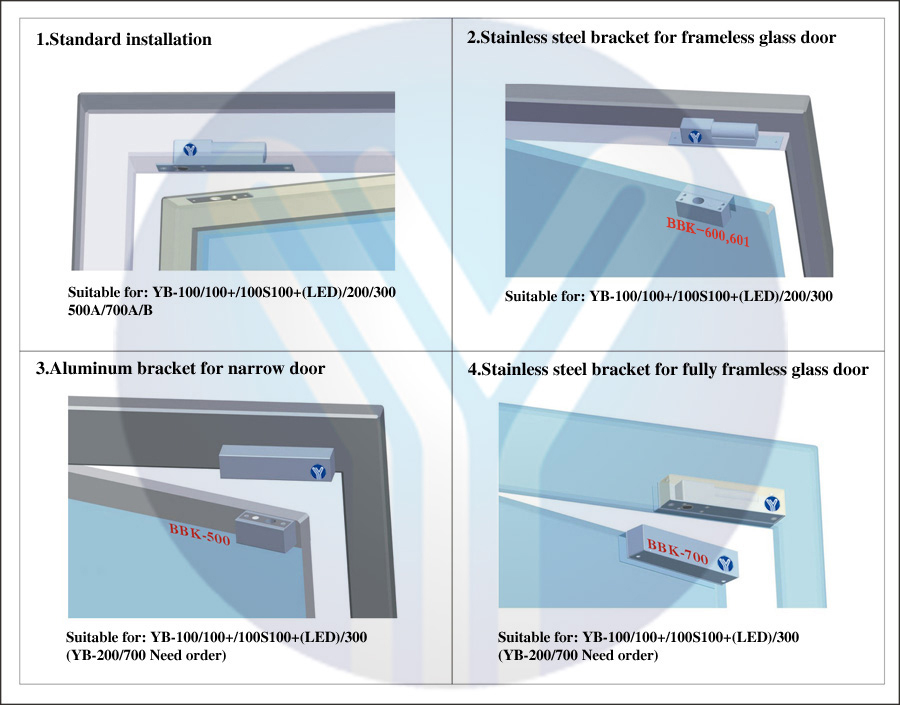

 YB-100 100+ 100+LED 300 400.gif

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 30
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 21.44
