Call Point
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Call Point
There are 24 Similar products,Comparison

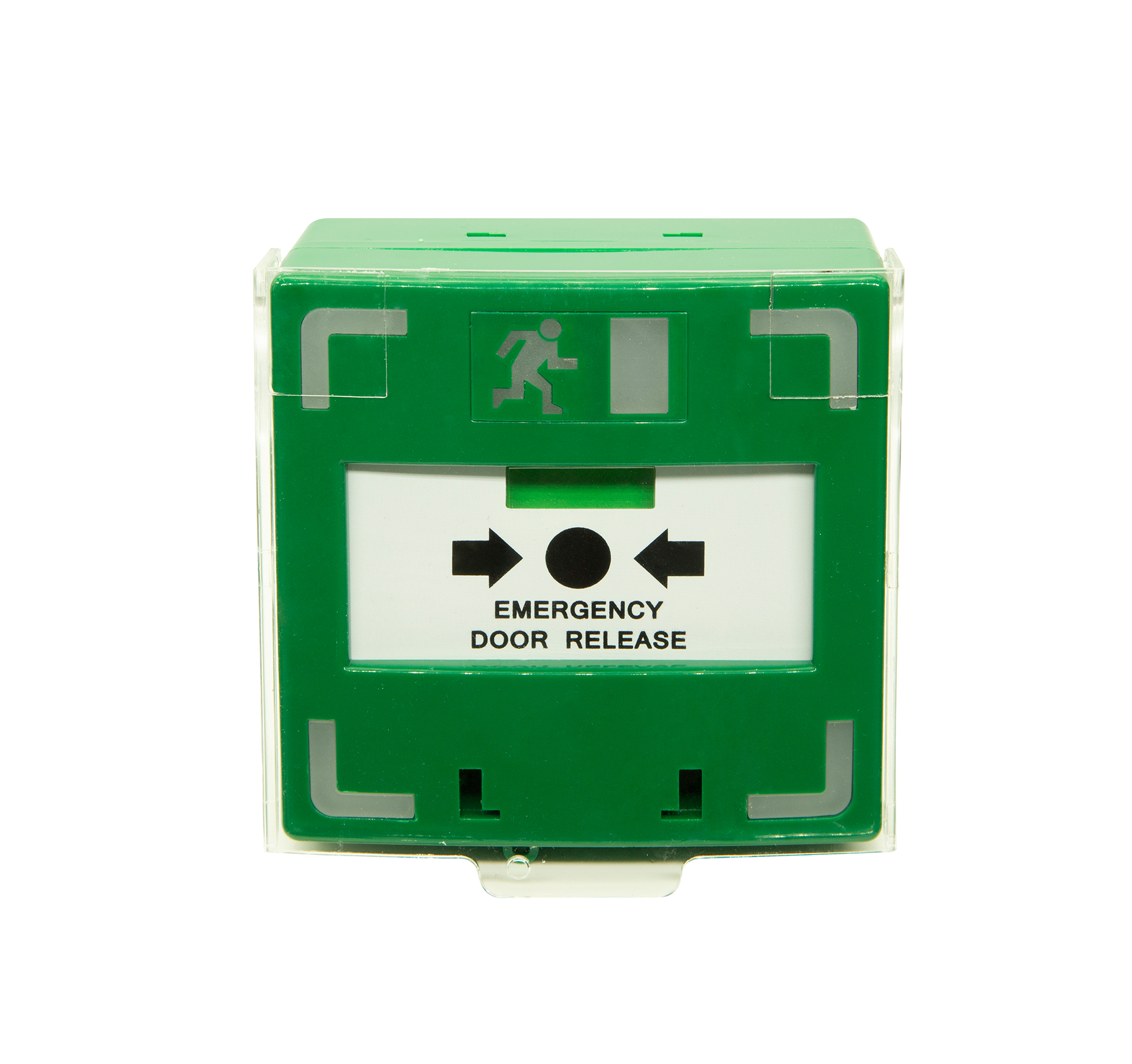

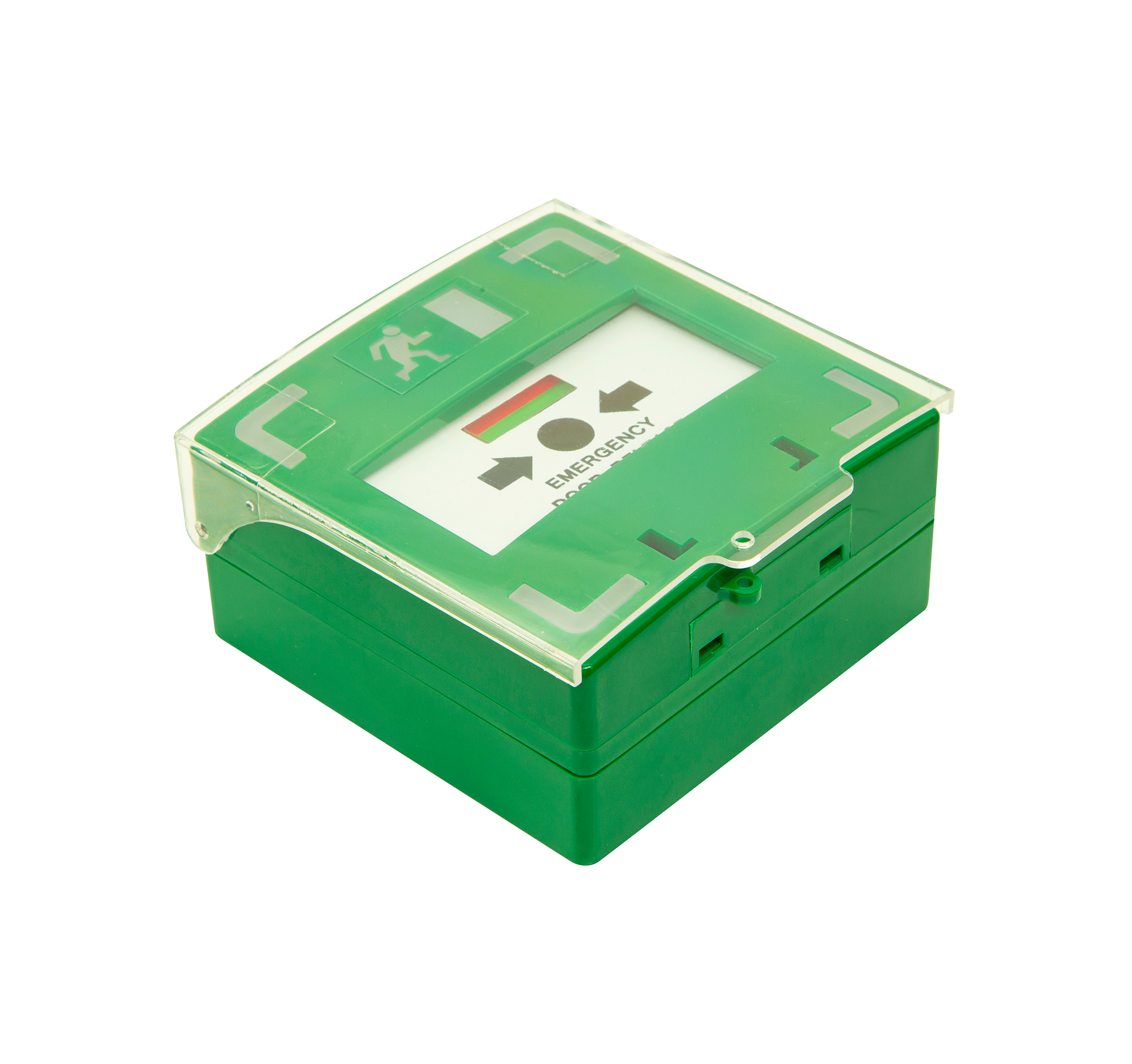

Triple Pole Resettable Call Point with LED(green)
Model:CPK-863G-3(LED)
CPK-863G-3(LED) is a Green color Resetable Break Glass Fire Emergency Exit Release Button (Single pole) suitable for Exit Door, Emergence Door.
Keywords:
Share to:
Product Parameter Parameter Description

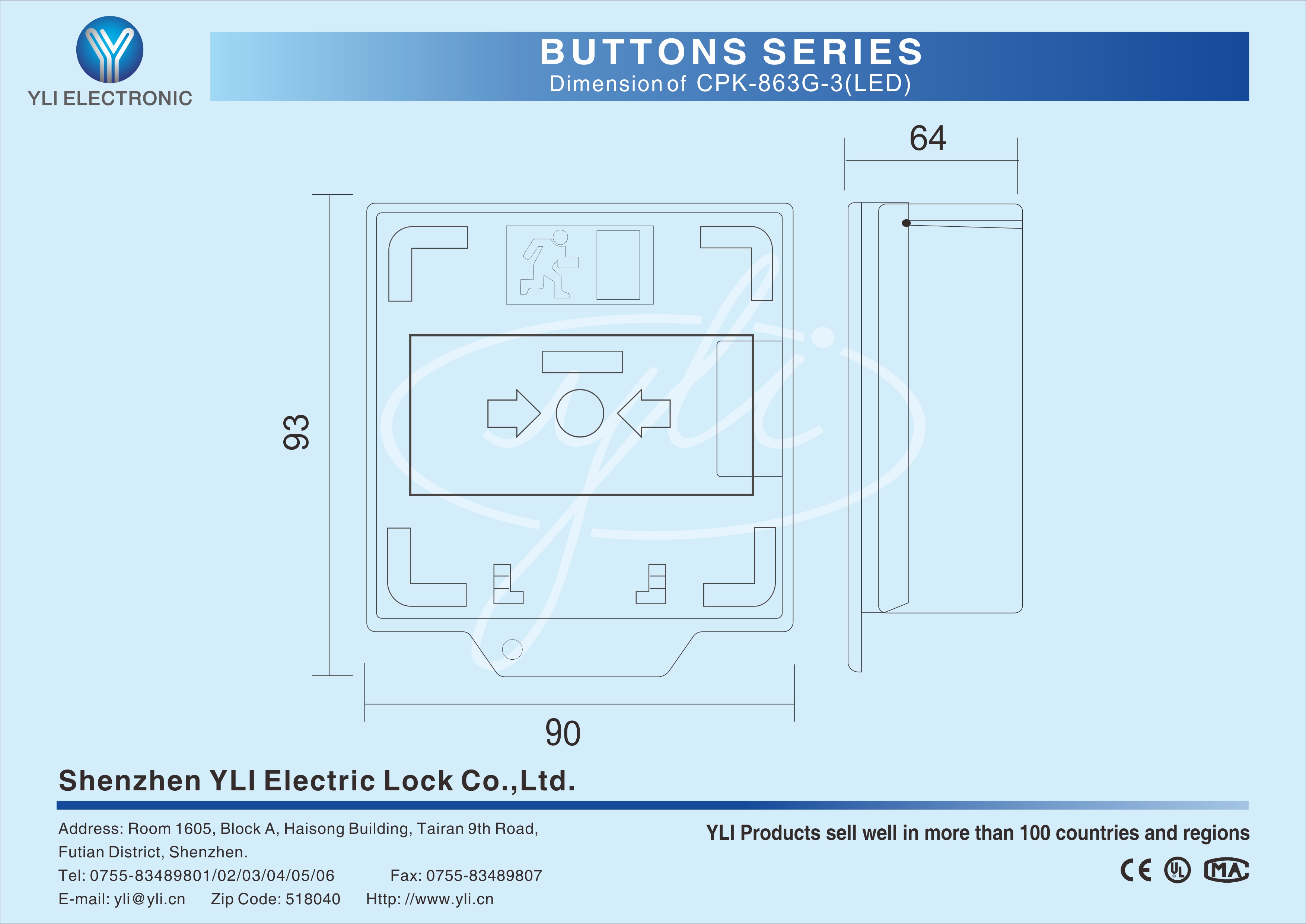

Dimensions 90Lx93Wx64H(mm)
Power supply DC 12V~DC 24V
Operation current DC12V/18mA(Standby)/75mA(Operation)
DC 24V/11mA(Standby)/41mA(Operation)
Buzzer Set as silent,interval wailing or continuous wailing
Indicator Dual-colour (red and green).
Red indicator to set blinking , off or on.
Output N.O.N.C.& COM.Output (Maximum load of 125V/3A)
Relay delay trigger time 1~60s
Material ABS,PC(transparent part)
Weight  0.2kg

1.Resettable design,obvious indicators around the edges of the unit.
2.Press the pressing plate to enable the output function.
3.Pressing plate with status (green and red) shown.
4.Reversionary key with non-slip design.
5.lnput power range from DC12-24V to connect with all types of fire alarm system
6.Built-in buzzer status to set as silent, interval wailing or continuous wailingVolume is adjustable.
7.Easy to assemble, outer case without screws, 3 set of output points toconnect other equipment, embedded or surface installations to select.
Note: only has output point function.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 50
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 10.0
