280kg
Gesamt 11 ?hnliche Produkte，Vergleich

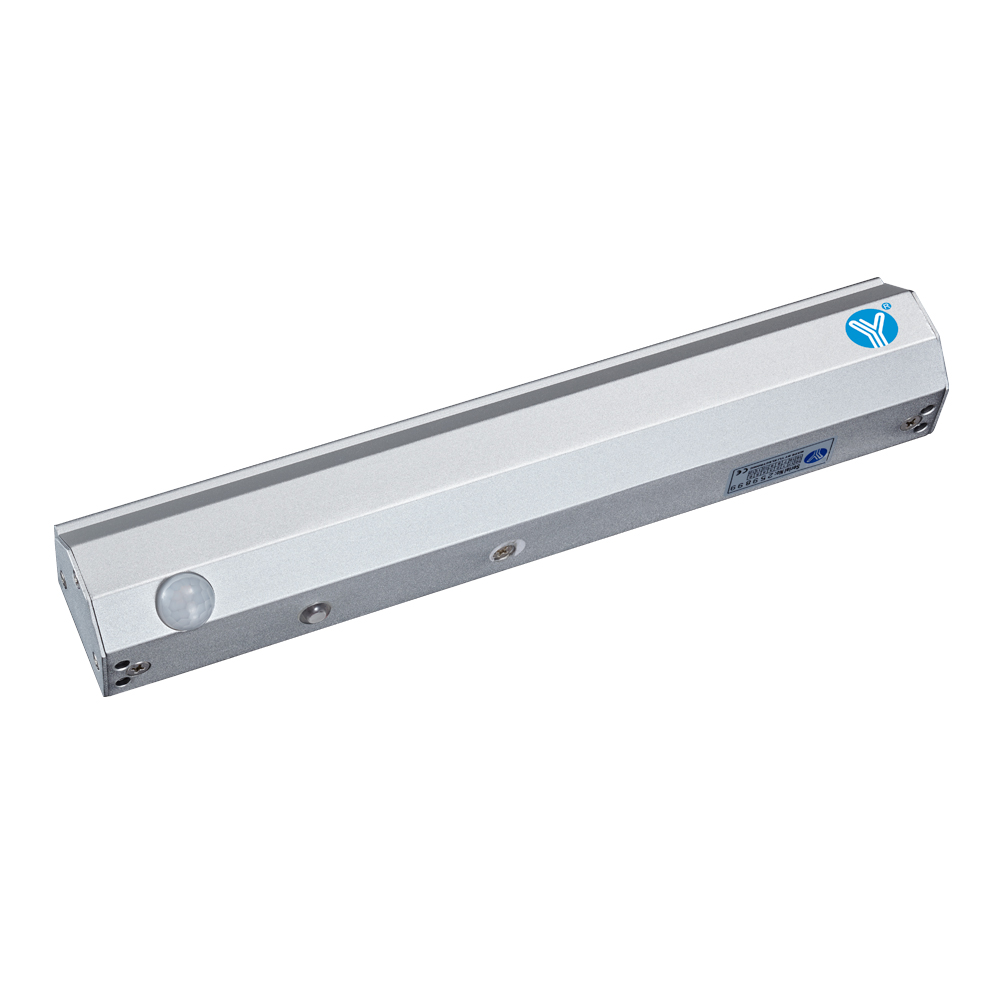

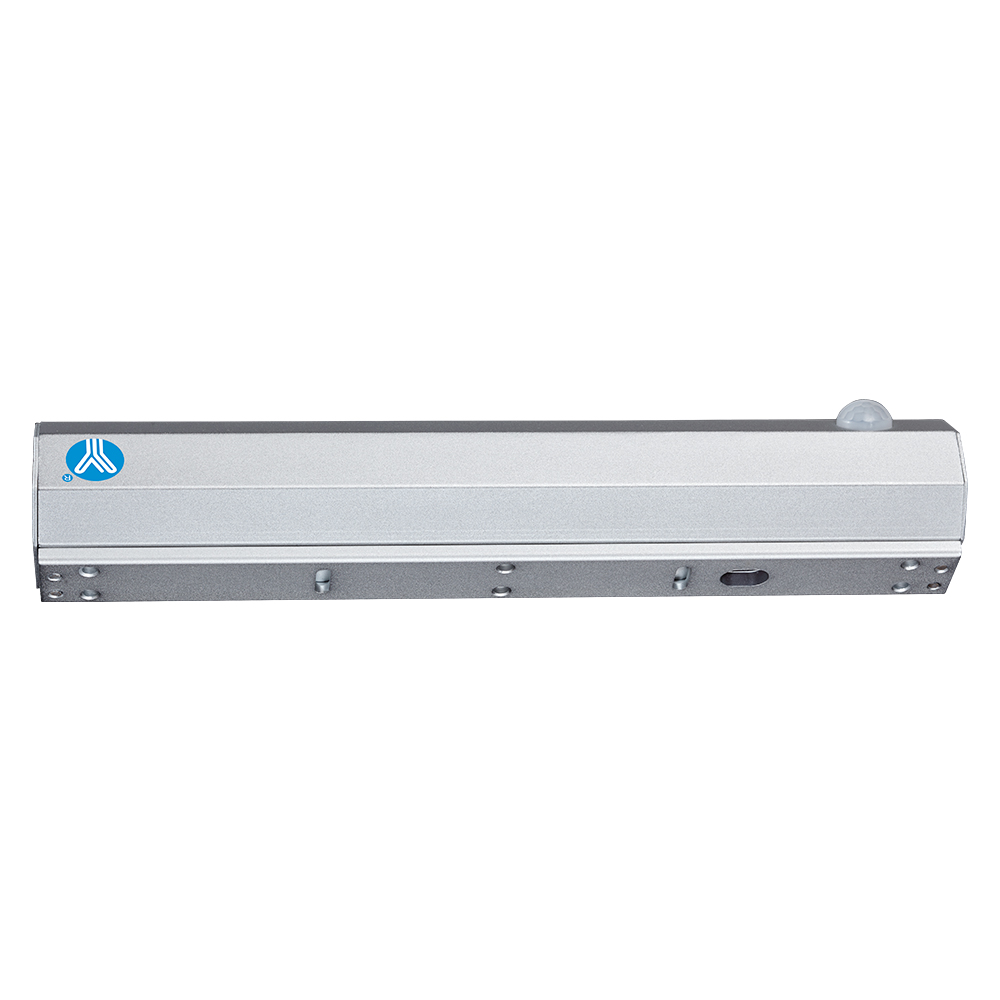

Infrared Sensor Magnetic Lock
Model：YM-280IS(LED)
YM-280IS(LED) is a new type of single door Electromagnetic Lock with the infrared induction automatic unlock function,Due to it can improve the efficiency of Access control automation effectively,it’s widely used in Emergency Exit of intelligent building,residential community, shopping center, airport, HSR station, subway station, the grand theatre and so on.
Teilen Sie zu：
Product Parameter Parameter Description

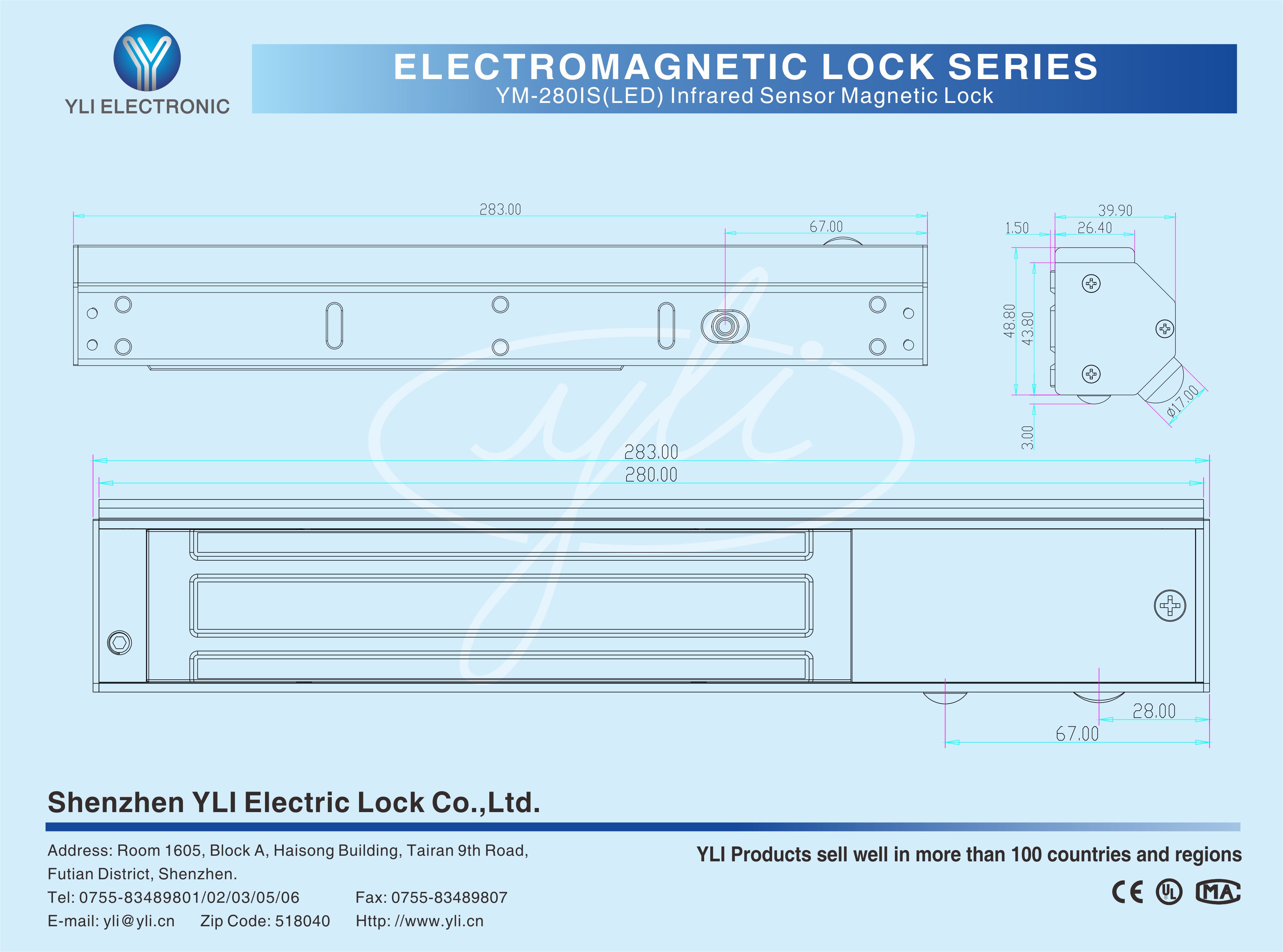

Size 283Lx48.8Wx39.9H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Holding Force 280kg(600Lbs)
Signal Output Lock signal(NO/NC/COM)
LED Red shows locked ;Green shows unlocked
Time Delay 3/6/9/12sec adjustable
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Detection range 3m
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Patent Number ZL2018200625270
Weight 2.6kg
Certification MA CE-EMC CE-LVD FCC RoHS REACH WEEE
Infrared sensors device, 3 meters detection distance
130 degrees of infrared human induction angles
High brightness LED displays the status of an electric lock
Dual voltage 12 or 24 VDC(optional)
Signal output of lock, NO/NC/COM
High strength magnetic lock cylinder designed; Strong electromagnetism force
The latest industrial design,safety and steady



Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 8
Packing Size(L*W*H)(cm) 59.5*34.5*15.3
Gross Weight(KG) 20.6
