| Product Parameter |
Parameter Description |

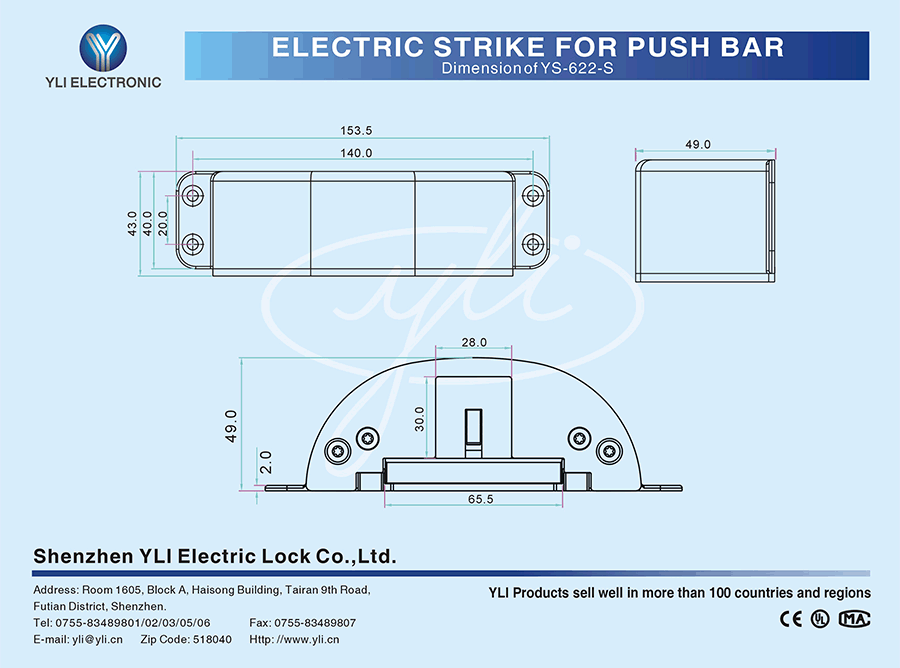

| Lock Size |
153.5Lx43Wx49H(mm) |
| lock tongue structure |
304 Stainless Steel |
| Holding Force |
1000kg |
| Voltage |
DC12V |
| Current |
12V/220mA |
| Signal Output |
Door sensor NO/NC/COM |
| special design |
applies to all brands of fire push rod lock |
| Suitable For |
European & American fire push bar |
| Surface Temperature |
Within +20℃ |
| Suitable Temperature |
-10~+55℃(14-131F) |
| Operating Humidity |
0～90%(non-condensing) |
| Face plate Housing |
High temperature paint |
| Lock tongue |
Surface by coating nickel |
| The door open |
90 degrees |
| Weight |
0.52kg |
Enhanced stress structure design
1000000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
